Used 2011 GLEASON 275 G | GEAR GRINDERS

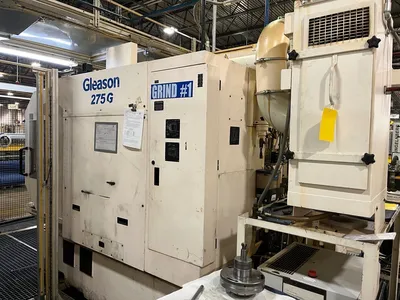

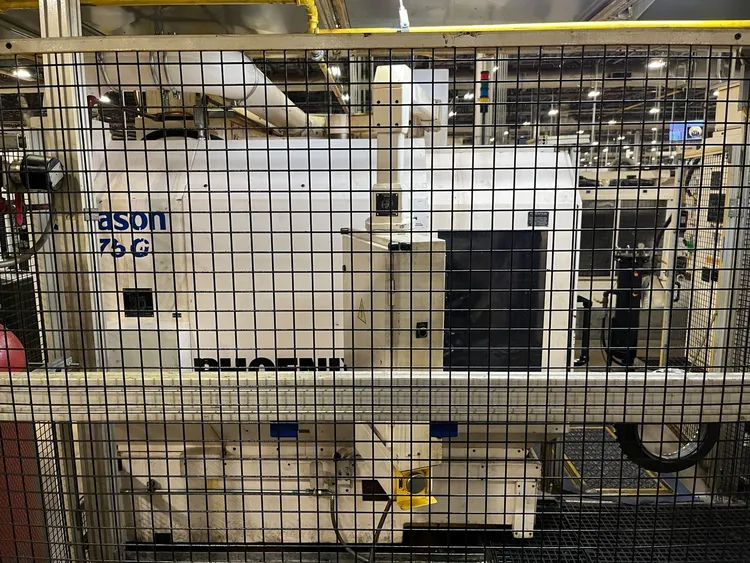

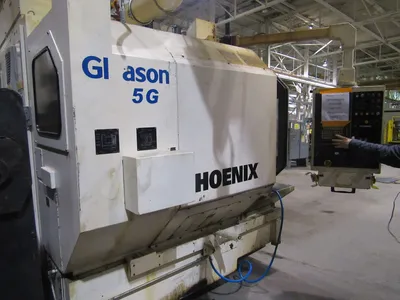

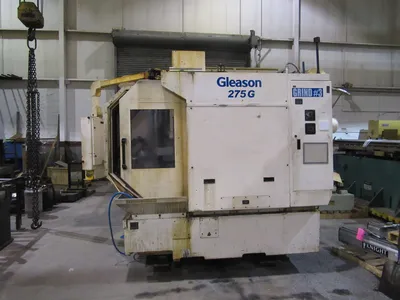

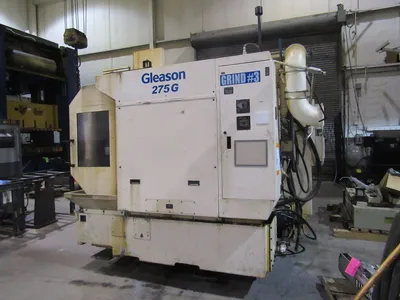

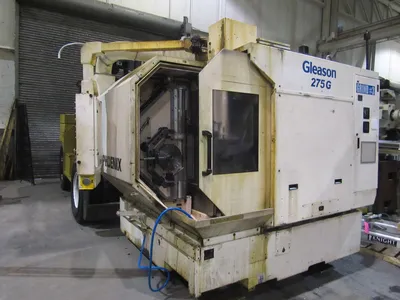

Gleason Phoenix II CNC Straight & spiral Bevel Gear grinder
Model 275-G

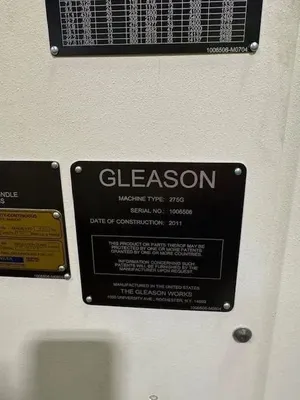

S/N 1006506 & 991709
New 2011 & 2010

Machines are presently running under power in plant. Machines
can be inspected in Excellent running condition.

Specifications
Ratio transmission................................10:1
Minimum number of teeth....................3
Maximum number of teeth....................200
Range of tooth size................................0.79”(20mm)
Tooth width maximum...........................2.28”(58mm)
Spindle speed.........................................6000U/min
Work piece spindle speed......................1200U/min
Diameter of tools maximum..................9.06”(230mm)
Diameter of tools minimum...................2.72-3.35”(69-85mm)
X-axis.......................................................12.80”(325mm)
Y-axis.......................................................13.78”(350mm)
Z-axis.......................................................18.50”(470mm)
B-axis.......................................................+ 90,1 / - 1 °

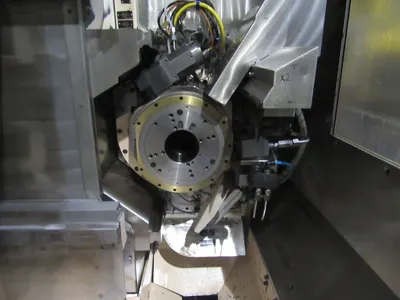

Work piece table - Ø :..............................8.35,2.80”(212,71mm)

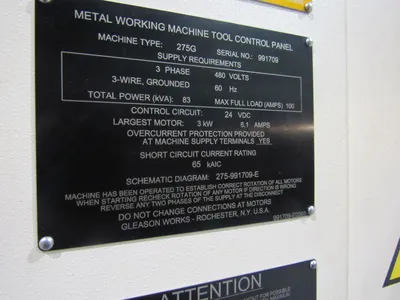

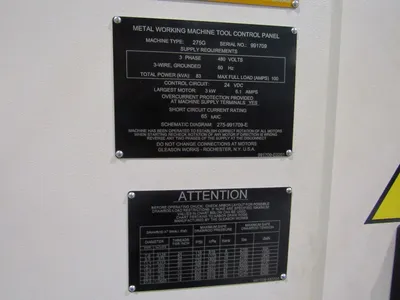

Total power requirement........................75 kW
Weight of the machine...........................10 ton
Dimensions of the machine..................8' x 12'

Equipped With:

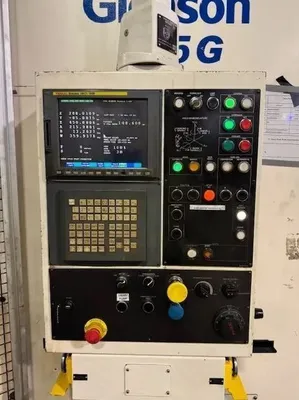

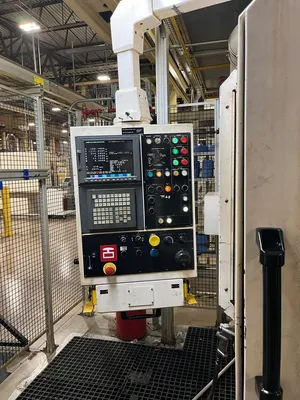

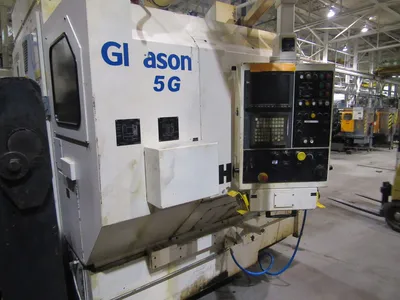

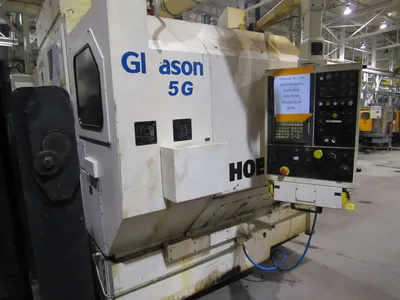

Fanuc model 160i-MB CNC controls.

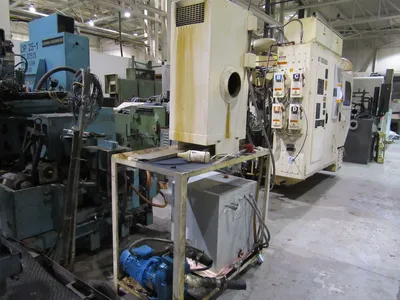

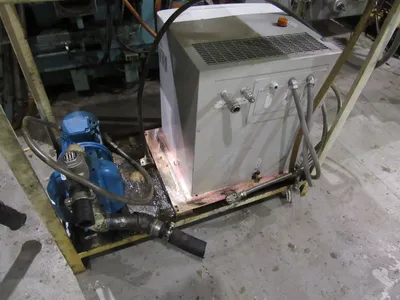

Hoffman HSF 200-SE coolant filtration unit.
Books and manuals

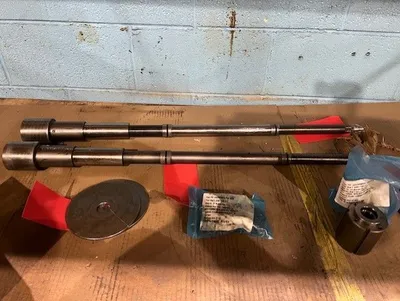

All necessary items to run machine.

Specifications are deemed accurate, however, subject to verification or prior sale.
