Used 2013 ACER EVS-3VSII | MILLERS, VERTICAL

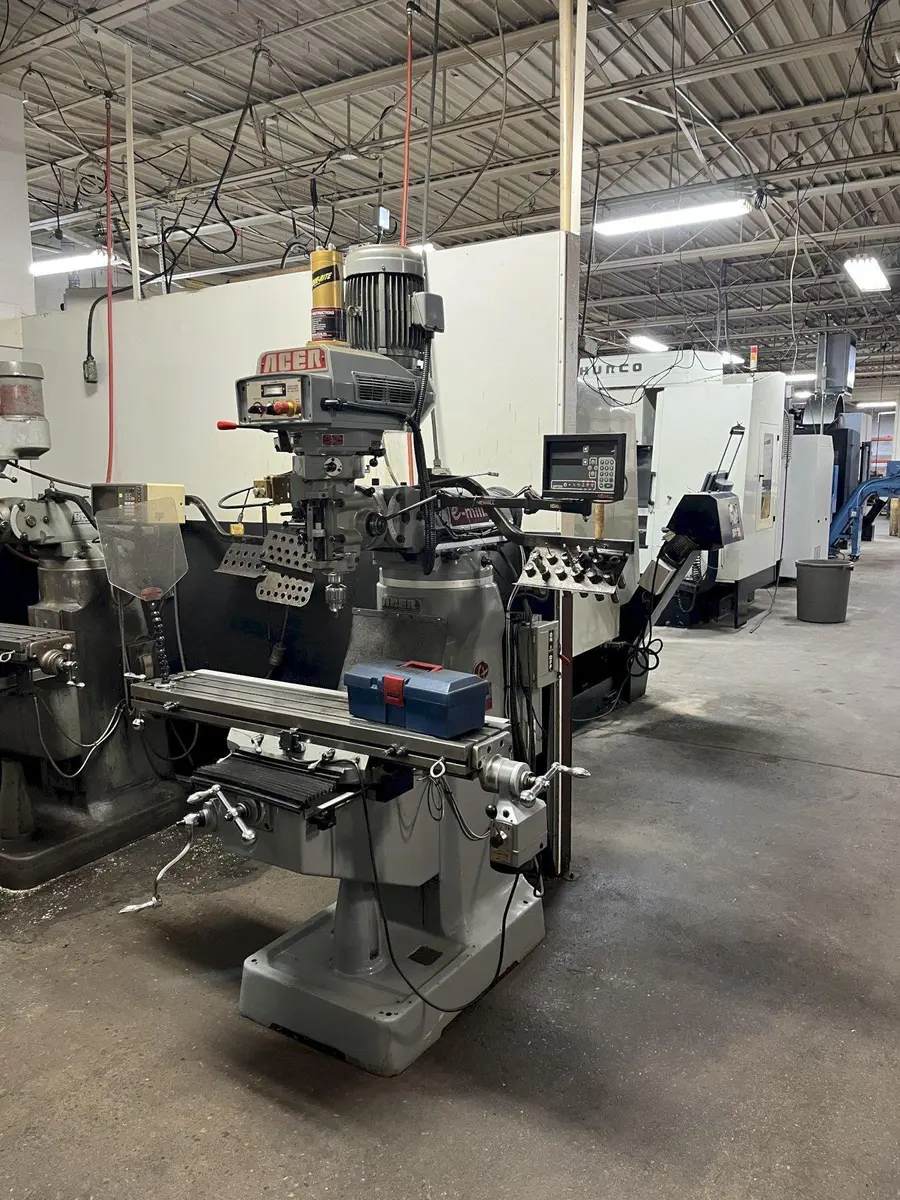

ACER EVS-3VSII KNEE MILL

S/N N10304182 Year: 2013

STANDARD SPECIFICATIONS
Power Table............................49”x 9”
Longitudinal Travel....................28”
Vertical Knee Travel...................16”
Cross Travel...........................12”
Spindle Speeds.........................6-4500 RPM

EQUIPPED WITH
Maxi Torque Rite, chuck torque.
Jacobs chuck.
2-Axis Newall model DP-700 DRO.
Precision X,Y axes & knee by hardened & ground dovetail ways.
3 HP Motor 220/440-3-60 cycles. (Inverter Motor)
1-Shot lubrication.

DIMENSIONS
67”x 63”x 71”
Approximate weight 2,380 LBS

Specifications are deemed accurate, however, subject to verification or prior sale.
