Used 2021 BRYANT RU2 | GRINDERS, INTERNAL

BRYANT RU-2 ID/OD CNC GRINDER

Ref# 44332 YEAR: 2021

STANDARD CATALOG SPECIFICATIONS
Max External Diameter...............................6.9”
Stroke Length.......................................10”
Workhead Swivel.....................................30 Degrees
Minimum Bore Diameter...............................0.40”
Minimum Bore, Chucker...............................4”
Minimum Bore, Shoe Centerless.......................5.5”
Maximum Length Of Bore..............................3”
X-Axis Travel.......................................2”
X-Axis Resolution...................................0.000004”
Z-Axis Travel.......................................10”
Z-Axis Resolution...................................0.000016”
Work Speed, Shoe Centerless.........................1,850 RPM
Shoe Centerless Drive Motor.........................1.5 HP
Work Speed, Chucker.................................4,000 RPM
Chucker Drive Motor.................................1 HP
Maximum Spindle Speed...............................120,000 RPM
Machine Weight......................................13,900 LBS

EQUIPMENT & FEATURES

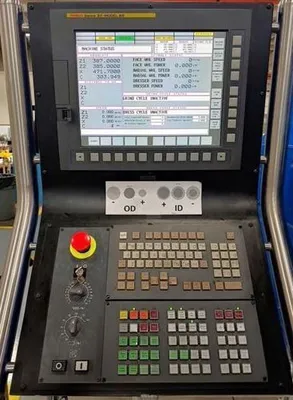

Fanuc 31I-B5 CNC control.
In-process gauge system.
Poka-yolk part load system.
CBN face grinding wheel.
CBN bore grinding wheel.
CBN OD grinding wheel.
CBN ID grinding wheel.
Hi-frequency rotary diamond dresser.
Shoe bodies, 1-set of shoe pads.
Shoe centerless fixture.

Specifications are deemed accurate, however, subject to verification or prior sale.
