NORTON 52 X 72 cylindrical universal grinder, 1953 model. Features 54" swing, 72" centers, 7.5 power, 5 HP workhead, and 20" grinding wheel. Suitable for heavy-duty applications. Ideal for precision grinding needs.

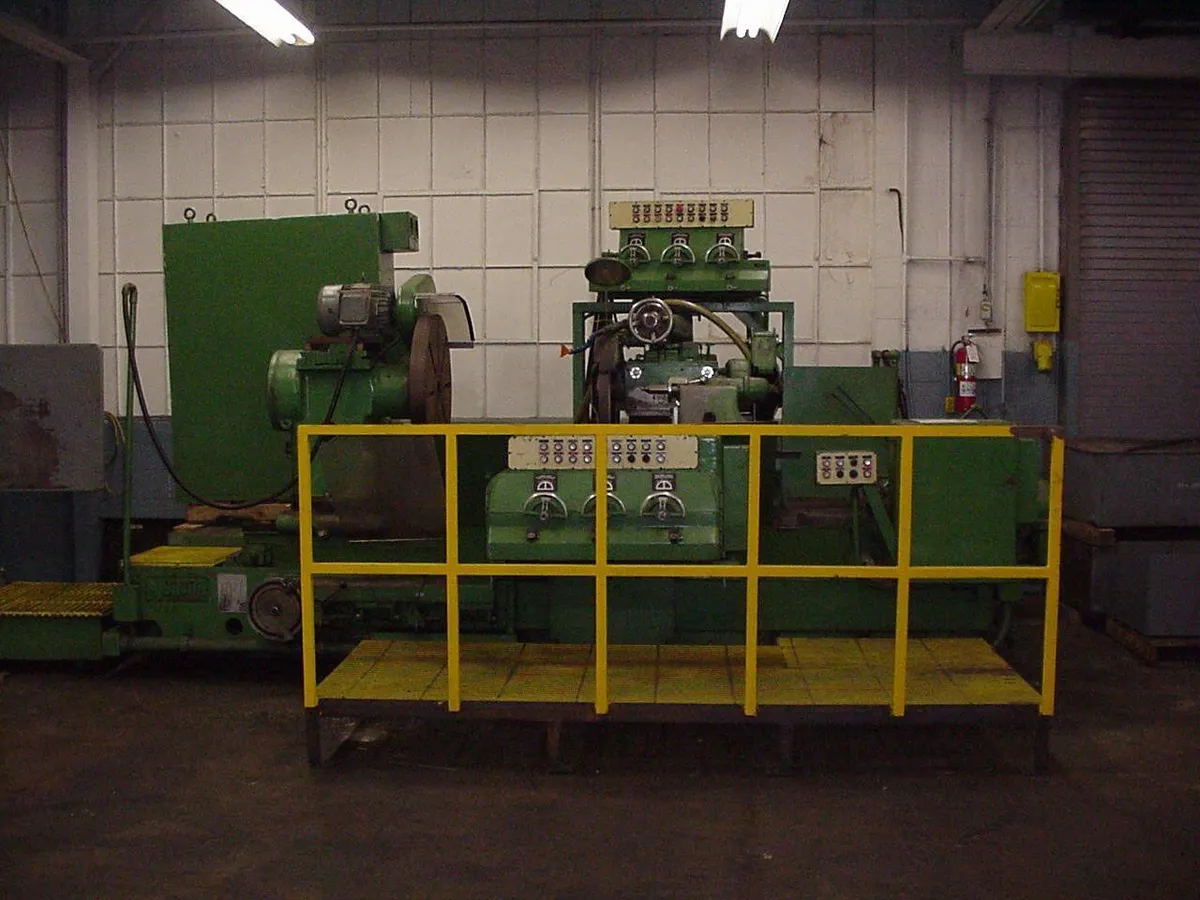

52" x 72" NORTON UNIVERSAL TRAVELING WHEEL
CYLINDRICAL GRINDER
S/N 25104C Year: 1953
STANDARD SPECIFICATIONS
Maximum swing over table………………………………….. 54"
Maximum distance between centers…………………………. 72"
Longitudinal travel – maximum……………………………… 107 1/2"
Table feeds –variable
Table swivel…………………………………………………… 1 1/2" in .025" increments
Work head swivels……………………………………………. 360 degree
Work head spindle nose………………………………………. Cam- lock
Either end of work spindle may be used.
Work head speeds – variable.
Work head live & dead centers.
Wheel head has double swivel base upper slide……………. 60 degree R/L
lower slide……………. 90 degree R/L
Grinding spindle will accommodate grinding wheel on both ends
Grinding wheel size………………………………………….. 20" dia. x 2" W x 5" hole
Semi-automatic tail stock.
EQUIPPED WITH
Rapid approach & return of wheel slide.
Work head face plate diameter………………………………………… 30"
Larger available at extra cost.
Front & rear controls (machine may be run from rear operator’s station).
Splash guards.
5 HP DC Work head motor.
7 1/2 HP 220/440/3/60 Wheel head motor.
5 HP 220/3/60 Hydraulic pump motor.
1/2 HP 220/440/3/60 Coolant pump motor.
Coolant tank & pump.
30" Face plate.
Work plate form.………………………………………………………. 42" x 114"
20 Assorted wheels.
Overall dimensions……………………………………………….…… 23’ x 12’
Weight – approximately………………………………………….…… 30,000 lbs.
Condition: Very good .
Specifications are deemed accurate, however, subject to verification or prior sale.
