Mfg. Accretech ( Distributed in the US by Zeiss)
Machine Type: SURFCOM 5000 DX
Year of Mfg: 2011
Serial Number: KB5701FF
Software: Acctee 5.16.4.0
PC: HP210 Windows 7

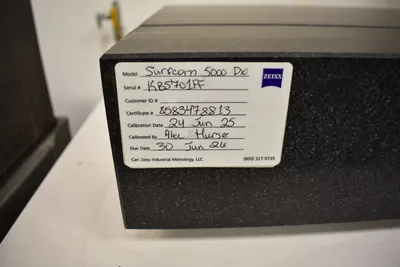

Last Calibration: 6-24-25

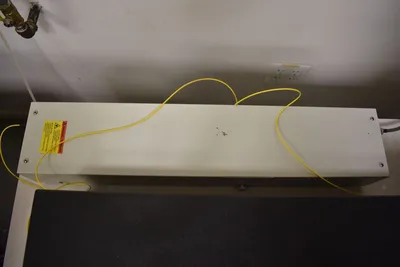

Recent Failure in the laser system. Zeiss remote support indicated laser HE-NE LGK7628 (PN 625006-3972-000) and/or Laser Power supply 101T-2450 (PN 625006-3973-000) were the cause and should be replaced. These parts were in stock at the time of quotation. Zeiss service likely required for installation of new part.

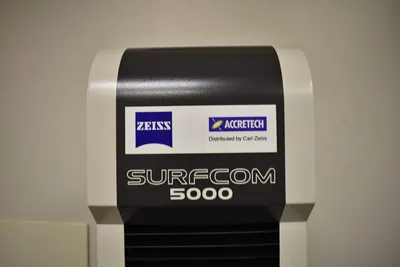

SURFCOM

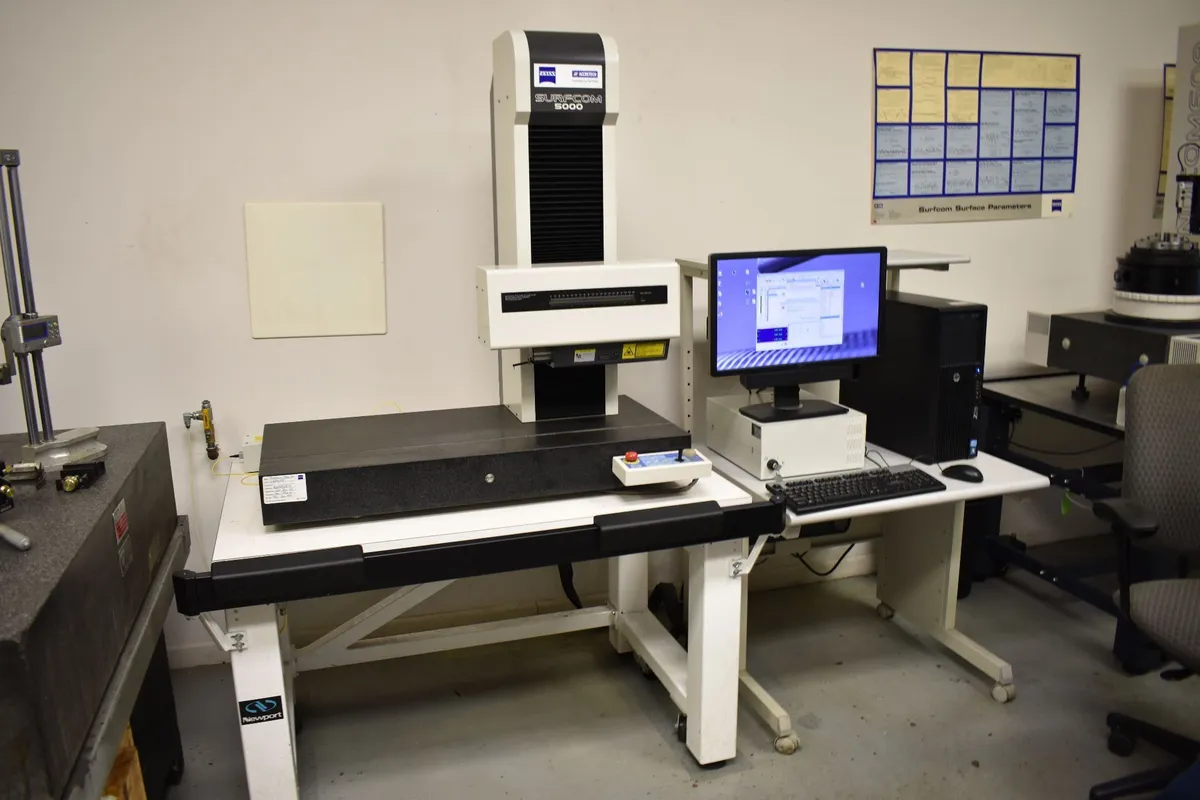

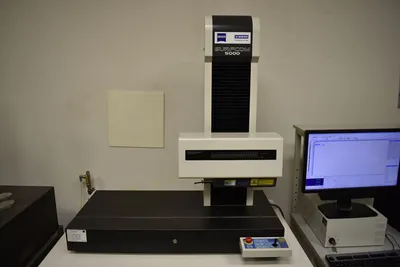

Surfcom 5000DX-W Consisting Of:

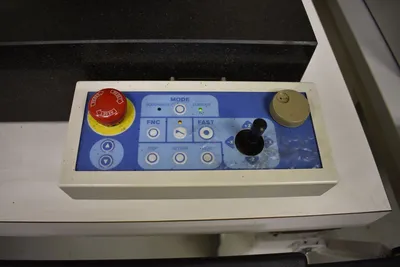

• Joystick Controlled Column (500mm) On Granite Base

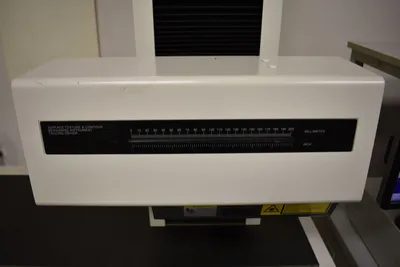

• Patented Linear Motor Digital Tracing Driver (200mm)

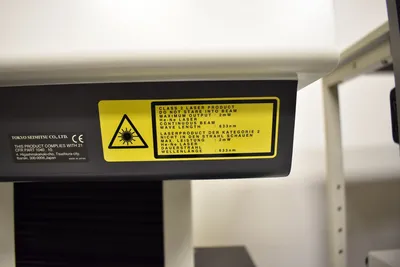

• Dual Beam Laser Interferometer Pickup 13mm @1X (26mm @2X)
• Highest Resolution In Class – 0.54 Angstroms in X, 0.31 Angstroms In Z
• Highest Accuracy In Class - +/- 0.4um/200mm In X, +/- 0.206um/12mm In Z
• ACCTeePro Surface Finish / Contour Analysis Software
Comprehensive Contour Analysis & Coordinate Control Features Surface
Texture Multi-Parameter Analysis For Roughness, Waviness, Profile
Teaching / Playback Function, ASCII Output File, Nominal Tolerancing
Profile Nominal Analysis W/ Best-Fit (CAD DXF/IGES IO)
Custom Reporting & Layout (DTP)
• Interface Unit W/ Connection Cables For Surface Finish/Contour
• Calibration Set For Contour (Gage Blocks, Master Sphere Calibrator Unit)
• Calibration Ra Specimen For Surface Finish (E-MC-S24B)
• Instruction Manuals (English)

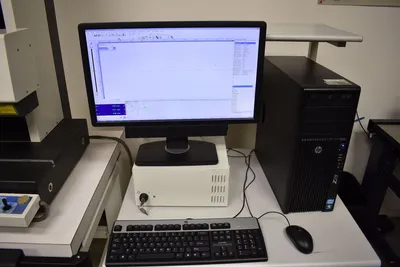

Computer
• Entry Computer System
• HP Z200 Workstation
• Intel Core i3-540 3.06 4MB/1333 DC CPU
• ATI FirePro V3800 512MB Graphics
• HP 4GB (2X2GB) DDR3-1333 ECC RAM
• HP 320GB SATA 7200 1st HDD
• Intel Pro 1000 CT GbE NIC Card
• HP USB Standard Keyboard & Laser Scroll Mouse
