Used ACER SUPRA-2040PD | GRINDERS, SURFACE, RECIPROCATING TABLE - HORIZONTAL

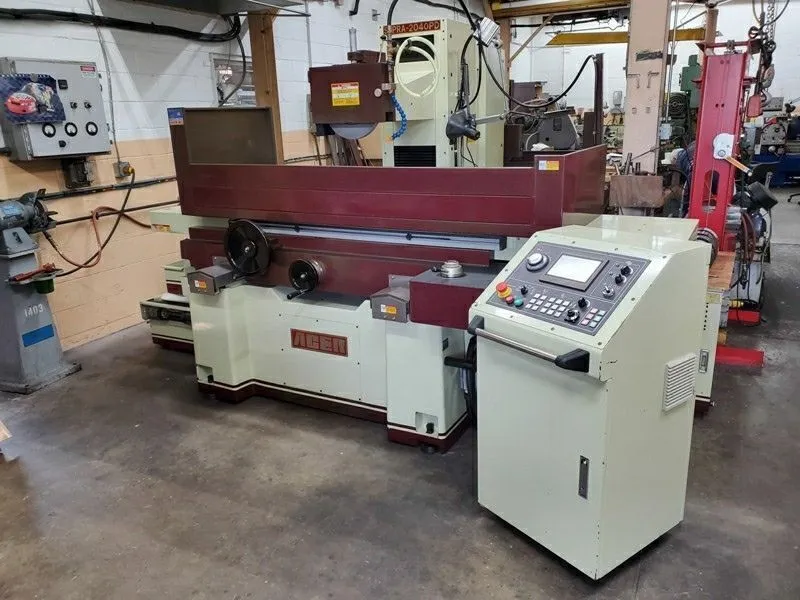

ACER SUPRA 2040PD HYDRAULIC SURFACE GRINDER

STANDARD SPECIFICATIONS
Table Area: 15.98”x 40.15”
Max Grinding Length: 40.15”
Grinding Width: 19.68”
Table Longitudinal Travel – Hydraulic: 41.73 via Manual: 43.30”
Variable Table Feed: 196.8 to 984.25 IPM @ 60Hz
Table Load Capacity With Chuck & Part: 1,620 Lbs. Max
Cross Travel Of Saddle Auto Feed Increment: 0.0397” – 0.984” IPM
Cross Travel Of Saddle Auto Constant Feed Speed: 20.07” IPM
Cross Travel Of Saddle Auto Manual Travel: 0.000787”
Vertical Feed Of Wheelhead Hand Wheel Per Grad: 0.000197”
Vertical Feed Of Wheelhead Auto Feed: 5.90” IPM
Vertical Feed Of Wheelhead Step Feed: 0.236” IPM
Standard Grinding Wheel Size: 13.97”OD x 1.968”Wide x 5”Bore

EQUIPPED WITH
Grinding wheel hub.
19-3/4”x 39” Acrer standard pole electromagnetic chuck.
PLC Control with operators console on wheels.
Over-The-Wheel wheel dresser.
Free standing coolant system with filter.
3 HP Hydraulic system motor.
1.3 HP Cross feed drive Motor.
¼ HP Rapid elevation motor.
Coolant system pump & conveyor drive motors.
7-1/2 HP Spindle motor.
Wired for 3-phase, 50/60 Hz, 1750 RPM @ 60 Hz, 230/460 volts.
Presently wired for 440 volt operation.
Acer operation, parts, & schematics manual.

Specifications are deemed accurate, however, subject to verification or prior sale.
