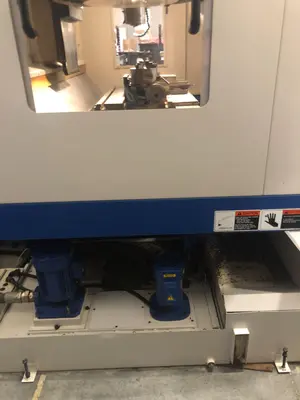

Used 2004 DAEWOO DMV-3016D | Vertical Machining Centers

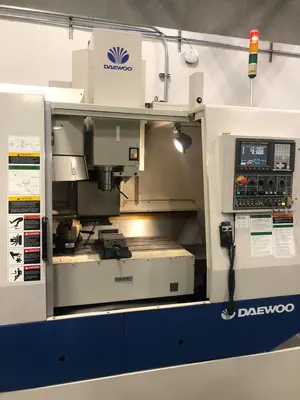

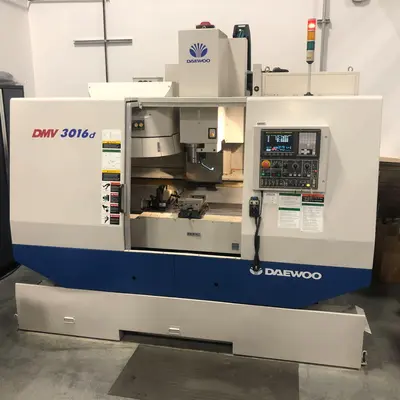

DAEWOO DMV 3016D CNC MACHINING CENTER

S/N AV4E0354 Year: 2004

PRELIMINARY SPECIFICATIONS

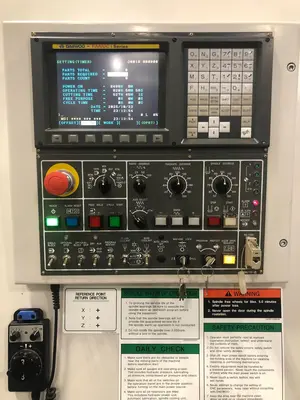

Control.............................Fanuc oi-MB
X-Axis Travel.......................32.3”(820mm)
Y-Axis Travel.......................16.1”(410mm)
Z-Axis Travel.......................20.1”(510mm)
Table Size..........................39.4”x 17.7”(1000 x 450mm)
Max Table Load......................600 kg
RPM.................................8,000
HP..................................15

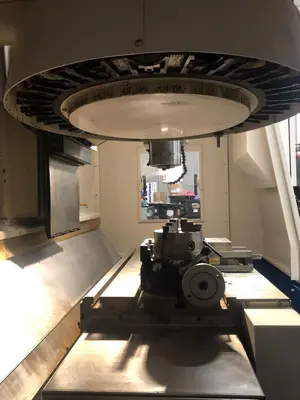

ATC.................................20 Tool
Tool Standard.......................CAT 40
Voltage.............................208V-240V
Phase...............................3
Frequency...........................60 Hz
Power...............................35 KVA
Positional Accuracy.................+/-0.005mm/Full Stroke
Repeatability.......................+/-0.002mm

EQUIPMENT & FEATURES
Box way construction on X, Y, & Z axes.
Flood coolant.
Base coolant.

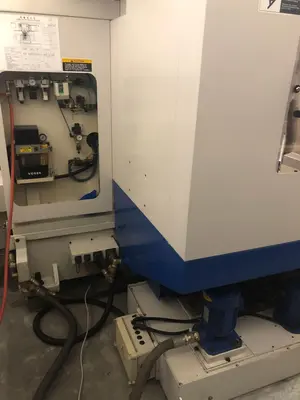

Automatic lubrication system.
Rigid tapping.
Leveling pads.
Numerous canned cycles, part scaling, rotation, & mirror imaging.
Engraving program.
RS232C I/O device.
Clamping kit.

Specifications are deemed accurate, however, subject to verification or prior sale.
