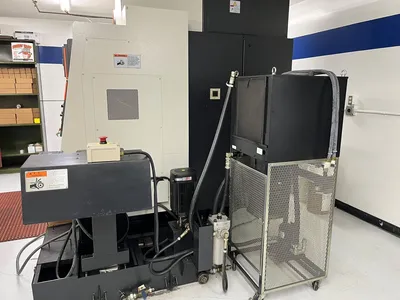

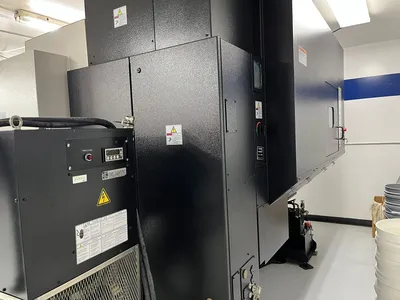

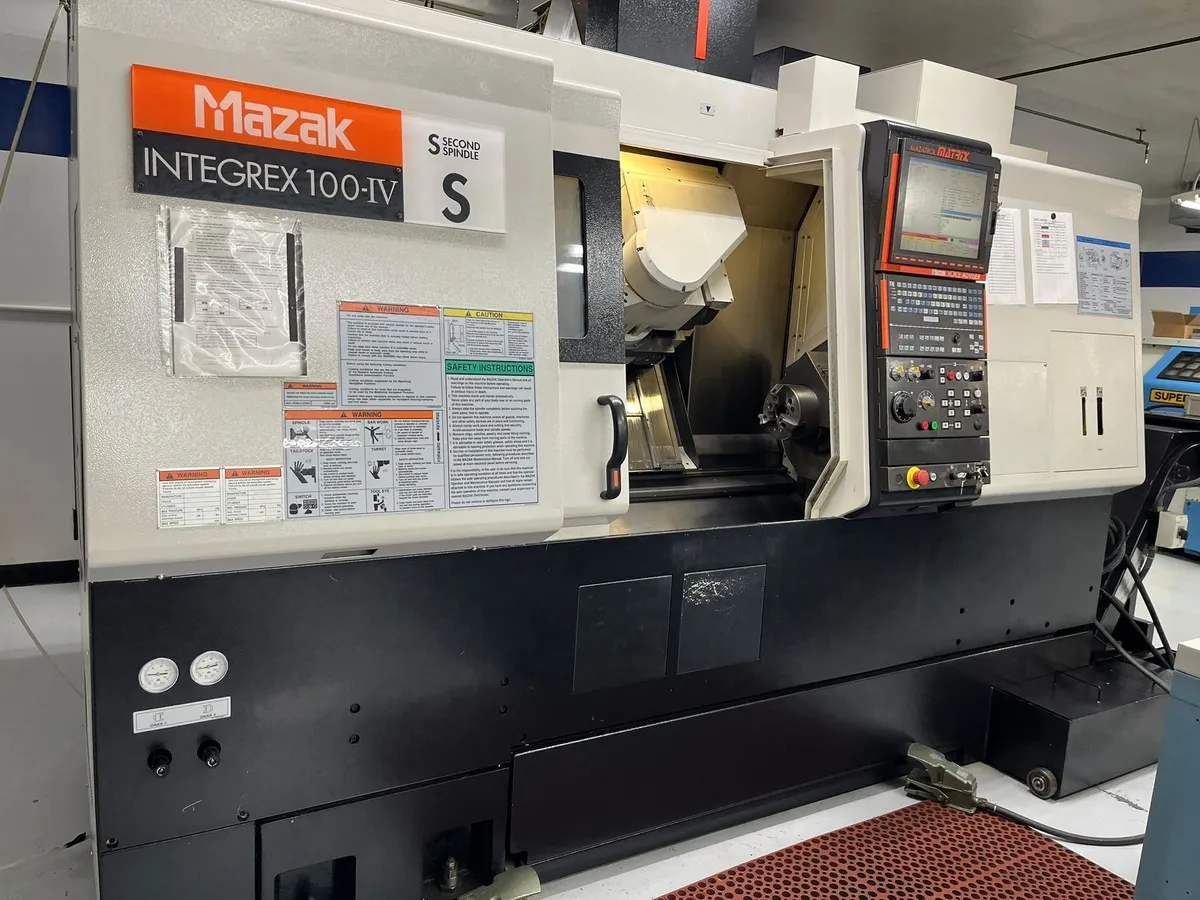

MAZAK INTEGREX 100-4S CNC PRECISION LATHE

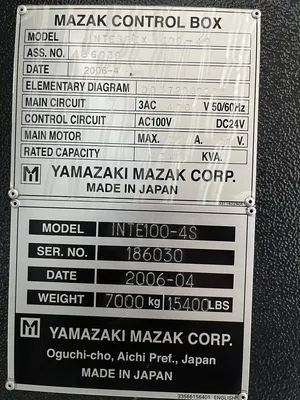

S/N 186030 YEAR: 2005

SPECIFICATIONS
Maximum Swing........................... 21.46"
Maximum Swing using Y-axis.............. 16.22"-21.46"
Maximum Swing over Cross Slide.......... 13.86"
Maximum Cutting Diameter: Chucking...... 21.46"
Maximum Cutting Length.................. 29.65"
Maximum Distance Between Chuck Faces.... 31.18"

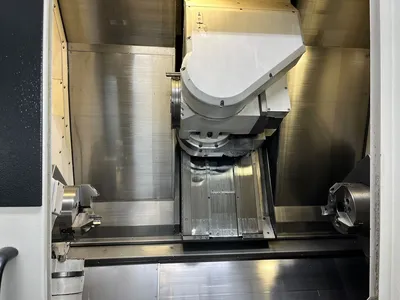

MAIN SPINDLE SPECIFICATIONS(L)
Spindle Nose............................ A2-5
Spindle Bore............................ 2.4"
Maximum Bar Work.... ................... 1.625”
Spindle Speed........................... 6,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Mins.)..... 10/15 HP (AC)
Spindle Torque.......................... 119 ft-lbs.

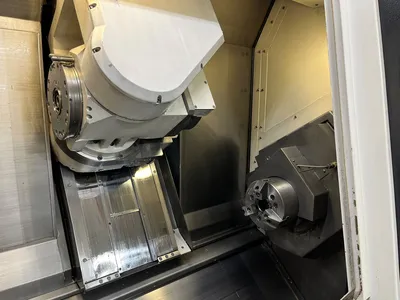

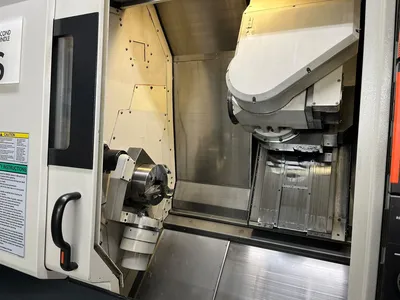

SECOND SPINDLE SPECIFICATIONS(R)
Spindle Nose............................ A2-5
Spindle Bore............................ 2.4"
Spindle Speed........................... 6,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg. ?
Spindle Horsepower (Cont./30 min)....... 10/15 HP (AC)
Spindle Torque.......................... 119 ft-lbs.

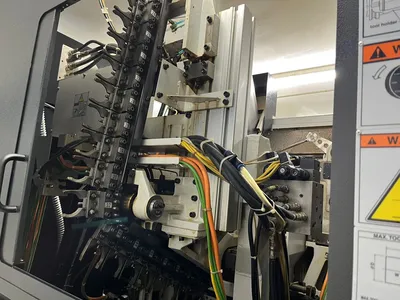

TURRET AND TOOLING SPECIFICATIONS
Type of Turret.......................... 1 position w/ATC
Tool Shank Height....................... 3/4"
Tool Size (Boring Bar Max. Dia.)........ 1.25"
Magazine Capacity....................... tools
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.2 sec.
Max. Tool Dia. w/All Pockets Full....... 2.76"
Max. Tool Dia. w/Adjacent Pockets Empty. 3.54"
Max. Tool Length (From Gage-Line)....... 7.87"
Maximum Tool Weight..................... 8.8 lbs.
ATC Tool Shank..........................
Rotary Tool Spindle Speed............... 12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 7.5 HP (AC)
Rotary Tool Torque (20% ED)............ 36.2 ft-lbs
Maximum Face Mill....................... 3"
Maximum End Mill........................ 1"
Maximum Drill........................... 1"
Maximum Tap............................. 5/8 UNC

AXIS TRAVELS
B-Axis.................................. 225 degrees (0.0001 degree increments)
Y-Axis.................................. +/-2.75"
X-Axis.................................. 16.14"
Z-Axis.................................. 31.69"
Second Headstock W-Axis................. 31.3"

AXIS RAPID RATES
Y-Axis.................................. 1024 IPM
X-Axis.................................. 1181 IPM
Z-Axis.................................. 1299 IPM
Second Headstock W-Axis................. 1181 IPM
C-Axis.................................. 555 RPM

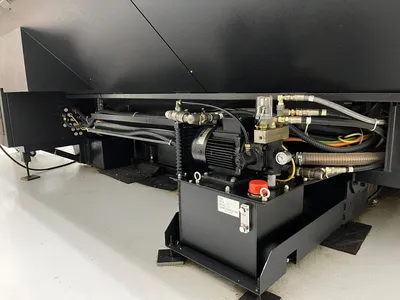

GENERAL SPECIFICATIONS
Floor Space (WxL)....................... 118.9" x 85.04"
Machine Height.......................... 96.18"

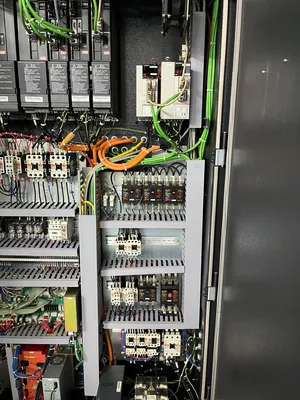

Total Power Required (Machine Only)..... 32.9 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.

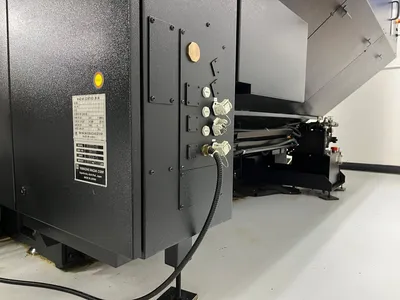

Air Requirements........................ 72 PSI/24.7 CFM
Machine Weight.......................... 16,314 lbs.

EQUIPPED WITH

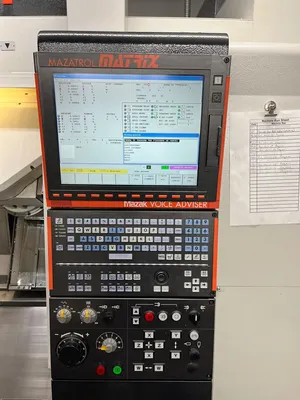

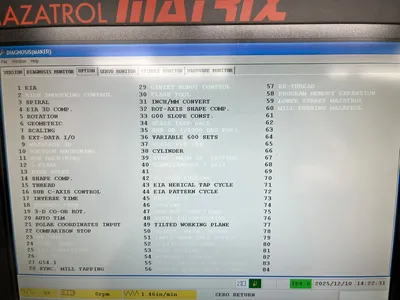

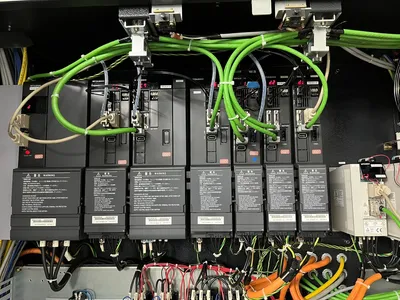

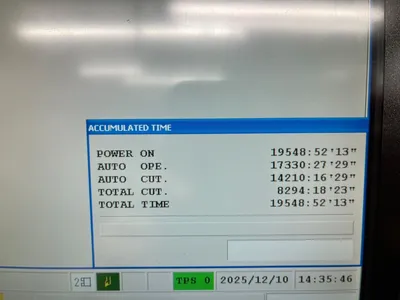

Mazatrol Matrix CNC Control
15” Color LCD
EIA/ISO Code Input Function
GOO Slope Constant
Shape Compensation for Rotary Axes
Mazacc-2D Software (Shape Compensation)
Cylindrical & Polar Coordinate
Mill Spindle Synchronous Tapping
Inch/Metric Conversion
CARDBUS I/F (2-Slot)
LAN Port
USB I/F
Y-Axis Control
Cut Feeder

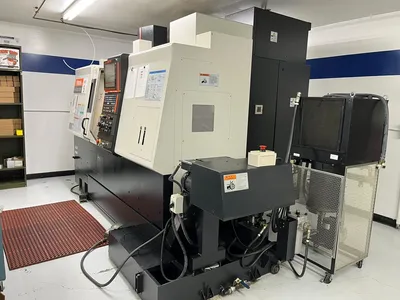

Chip Conveyor

Specifications are deemed accurate, however, subject to verification or prior sale.

All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
