Used 1975 LANDIS 14X48 3R | GRINDERS, CYLINDRICAL – UNIVERSAL

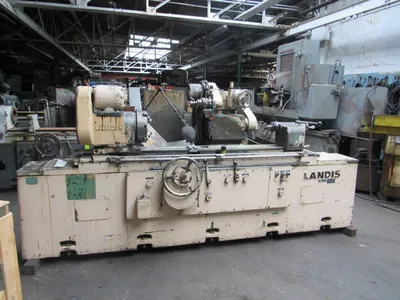

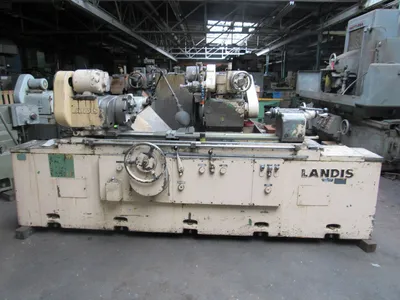

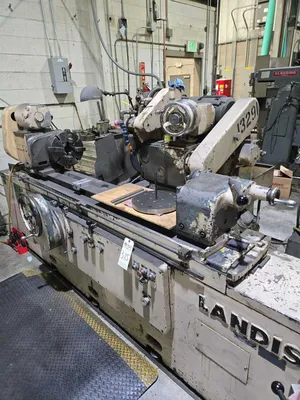

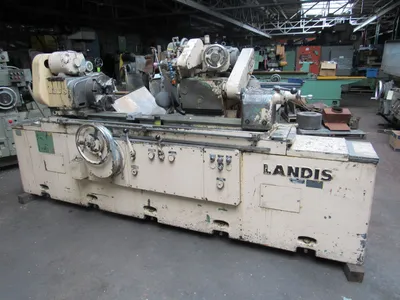

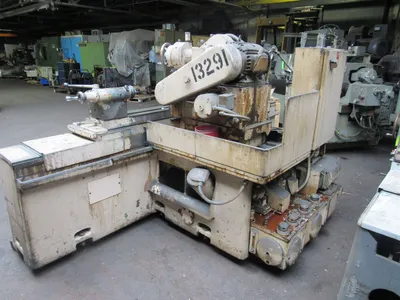

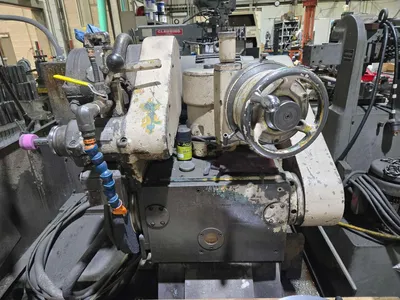

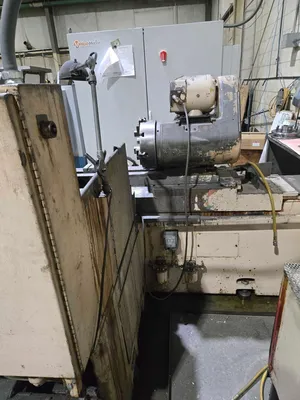

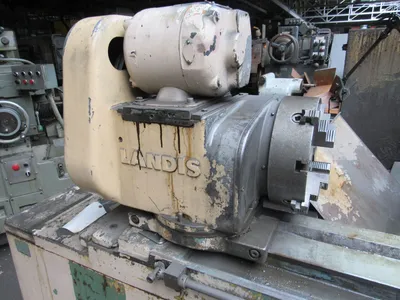

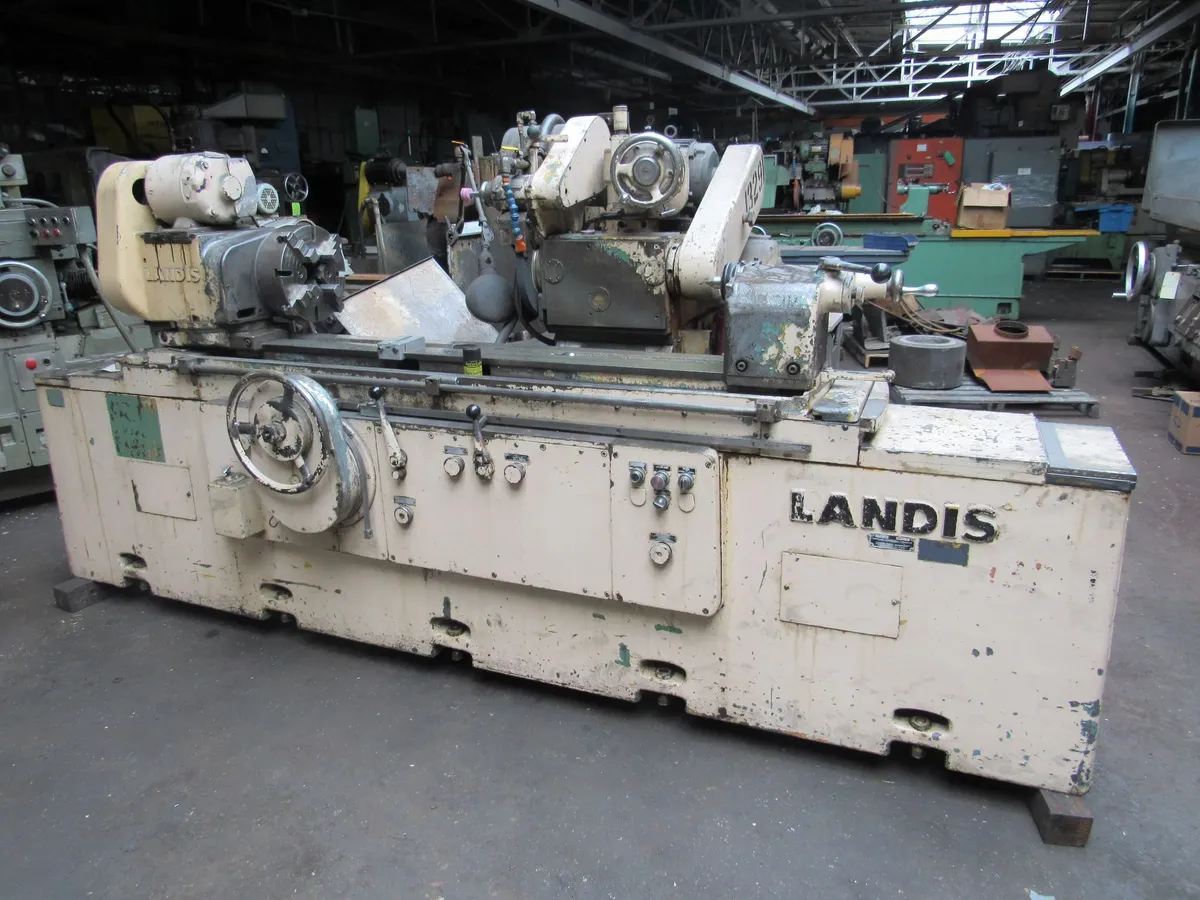

14" x 48" 3R LANDIS UNIVERSAL CYLINDRICAL GRINDER

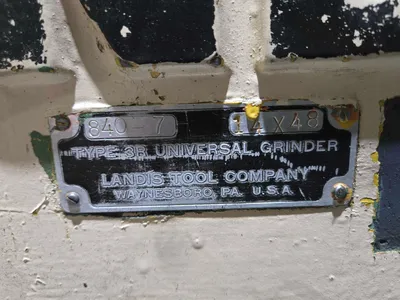

S/N 840-7 Year: 1975

STANDARD CATALOG SPECIFICATIONS
Maximum work swing............................. 14 31/32"
Traverse speed - inches per minute............. 2 - 240
Grinding wheel size - standard................. 14" x 2" x 5"
Grinding wheel head swivel range............... 180 degrees
Grinding wheel spindle speeds.................. 1720 - 2185 RPM
Automatic infeed at table reversal
on diameter - Basic machines................... 0.0003" - 0.004"
Work diameter reduction per revolution
of hand wheel.................................. 0.100"
Internal spindle speed......................... 15,000 RPM
Head stock work center......................... #14 Jarno
Foot stock work center......................... #10 Jarno
Work speeds - infinitely variable.............. 25 to 500 RPM
Hole through headstock spindle................. 1 7/16"
Head stock swivel range........................ 120 degrees
Head stock spindle nose........................ 6A-2
Swivel table graduated......................... 3 1/2" per ft.
(Degrees included angle)....................... 23 degrees
Weight......................................... 10,750 lbs.

MOTOR SPECIFICATIONS

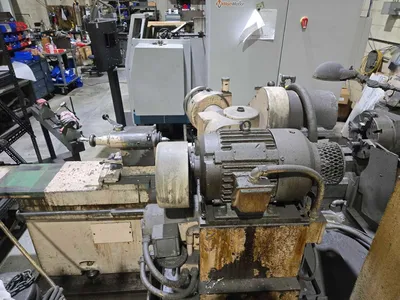

5 HP Wheel drive motor.
1745 RPM, 220/440 3 Phase, 60 Cycle.
3/4 HP Work drive motor.
2 HP Hydraulic pump and main drive motor.
1/4 HP Coolant pump motor.
1/4 HP Wheel spindle lubrication pump motor.

EQUIPPED WITH
Landis programmable micronic feed.
Swing down internal grinding attachment.
Left and right hand tarry.
Traverse feed rates.

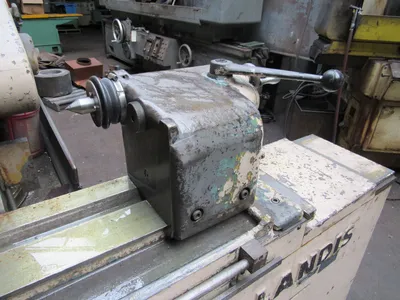

Lever operated tail stock.
Tail stock truing device.
Variable speed D.C. work head motor.
1 Shot Bijur lube.
Coolant in base.

Specifications are deemed accurate, however, subject to verification or prior sale.
