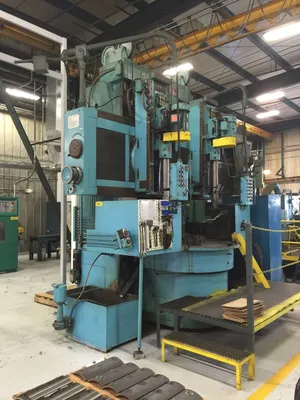

Used SPRINGFIELD 3A-TR RAIL TYPE | Vertical Universal Grinders

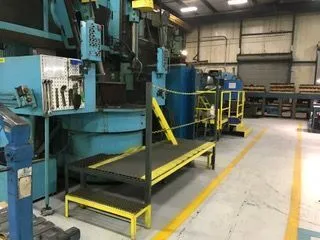

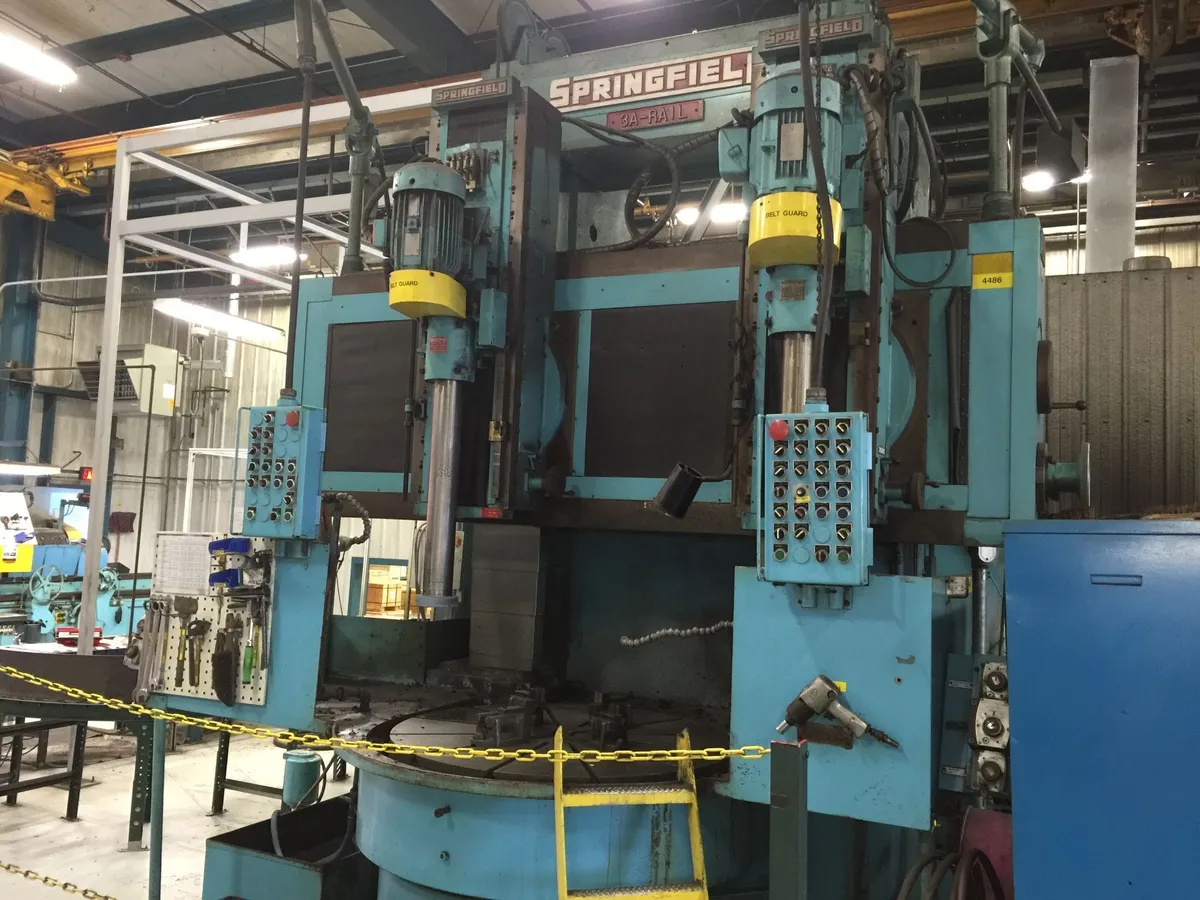

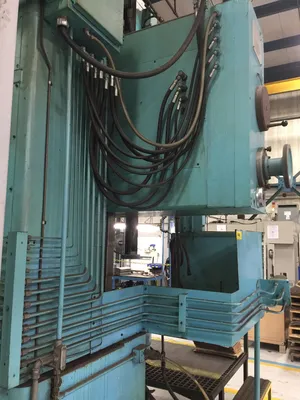

3-ATR SPRINGFIELD UNIVERSAL VERTICAL GRINDER

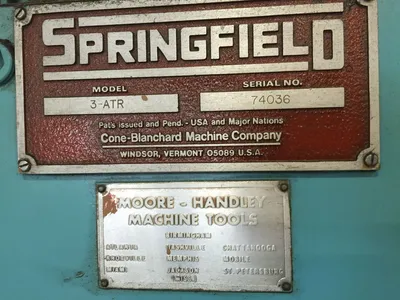

S/N 74036

STANDARD CATALOG SPECIFICATIONS

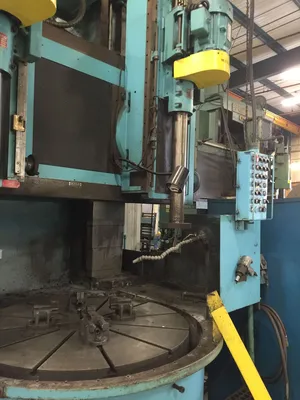

Table Diameter(T-Slotted).....................62”
Max Swing.....................................70-72”
Grinding Head Stroke..........................27.5-36”
Vertical Rail Travel(With Auto Clamping)......36”
Clearance Under Rail..........................12-48”
Grinding Spindle(Single Or Dual Heads)
....................10 HP Motor, 33” Long Spindle
Table Speeds(Variable)........................1-180 RPM
Table Load Capacity...........................10,000 LBS
Grinding Slide Swivel.........................45 Degrees
Weight........................................62,000 LBS

EQUIPPED WITH

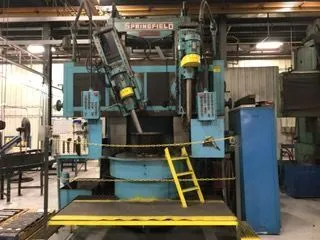

Heavy-duty rail type design.

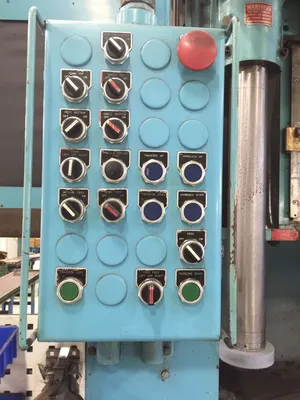

Pendant controls.

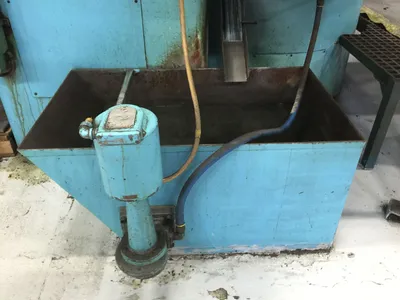

Standard coolant system.
Wheel dresser.

Specifications are deemed accurate, however, subject to verification or prior sale.
