Used NAGEL VS4-40 | HONES, VERTICAL

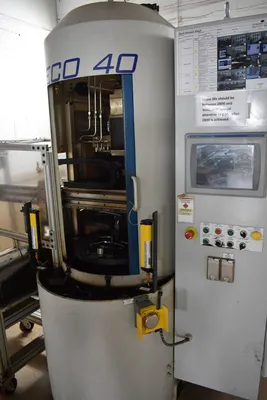

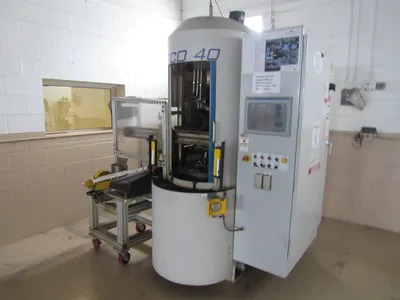

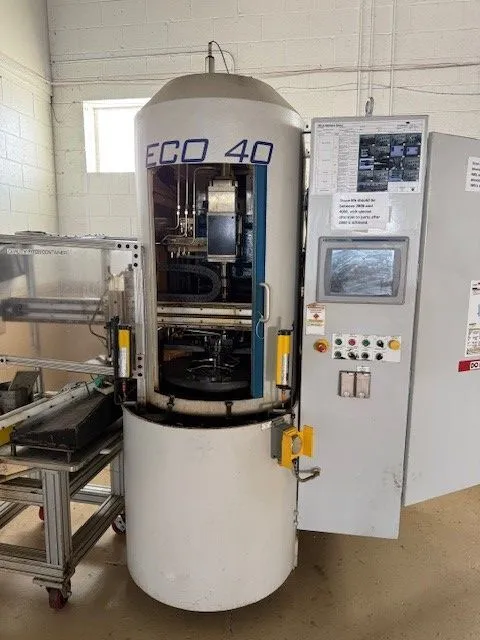

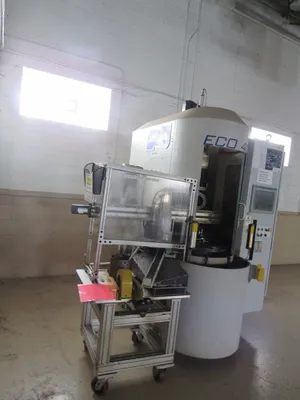

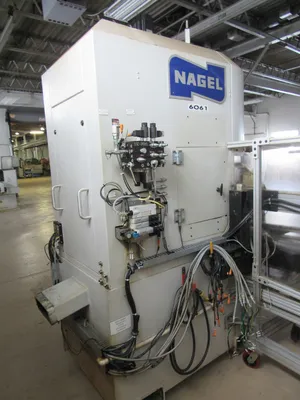

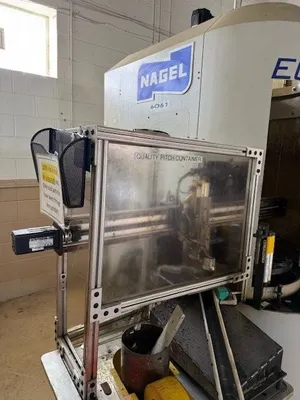

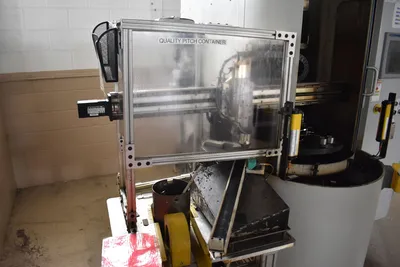

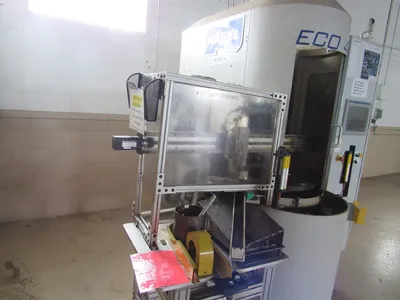

NAGEL VS4-40 VERTICAL HONE
USED AS AN R&D MACHINE

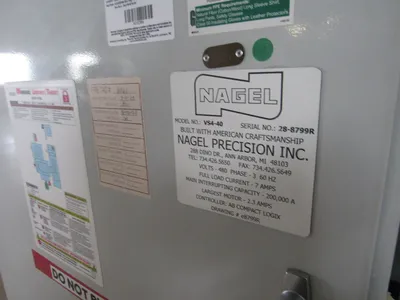

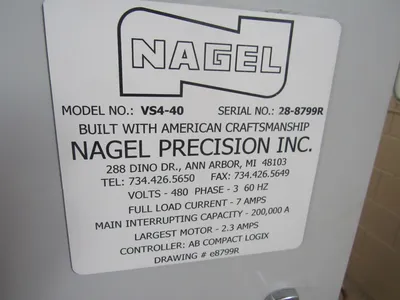

S/N 28-8799R

SPECIFICATIONS

PRE Honing
Size........................Allow 0.003 to 0.005 mm of stock
Surface finish..............Wt 0.6, RVk < 0.4 See Note 2
Roundness...................0.010 mm max
Straightness:...............0.010 mm max

AFTER HONING
Surface finish..............Rvk < 0.4 um, Rpk < 0.2 um, Ra – 0.2 um
Size........................43.599/43.587mm
Roundness...................0.01 mm
Straightness.................0.01 mm

Operation and Cycle Time Analysis – Pin bore
Hone..........................................15 sec
Index.........................................2 sec
Total Cycle time..............................17 sec

Electric
Power.......................................480V, 3 phase, 60 Hertz
Controls....................................24 V DC
Total load..................................25 Kw

EQUIPPED WITH

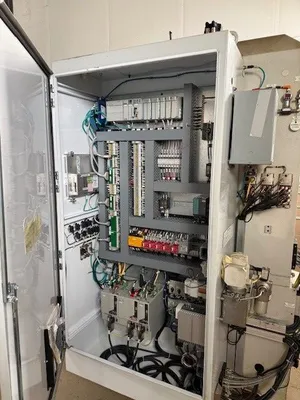

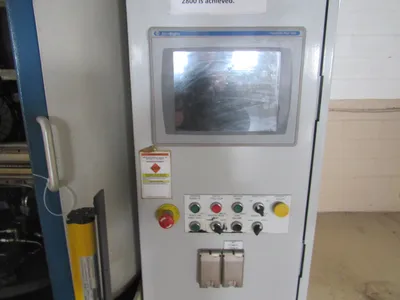

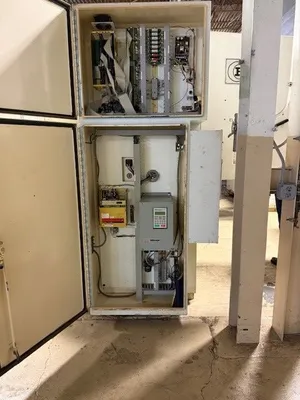

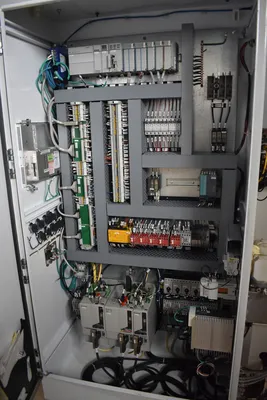

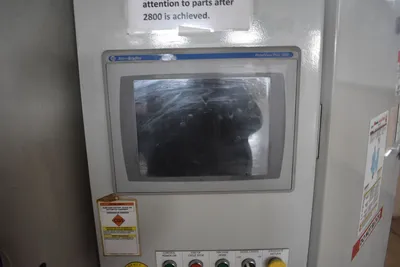

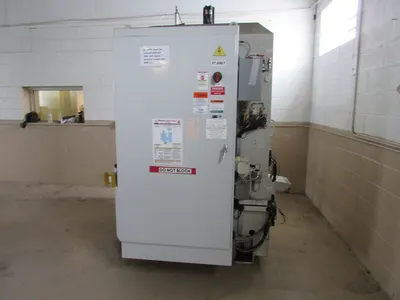

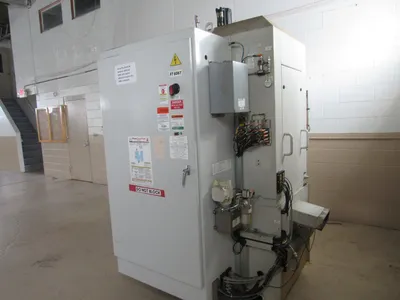

• Electrical system to Nagel specifications, to include an AB Control logix PLC and Panel View 1000/1500 HMI. System has ability to store multiple part programs

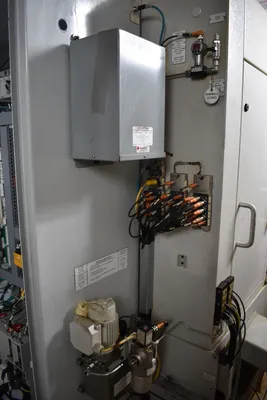

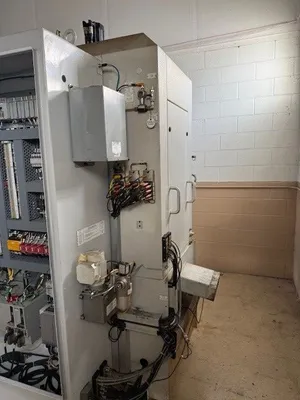

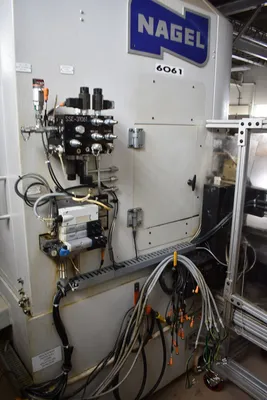

• Pneumatic System to Nagel specifications. Includes parker / Festo / Numatics components

• Machine enclosure to OSHA standards. The machine will be enclosed all the four sides (top open). All doors to be electrically interlocked for operator safety.

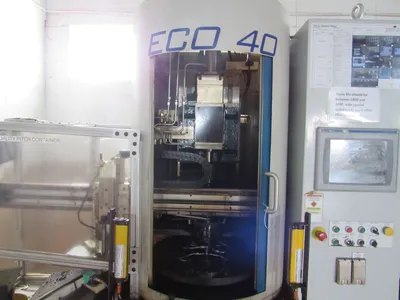

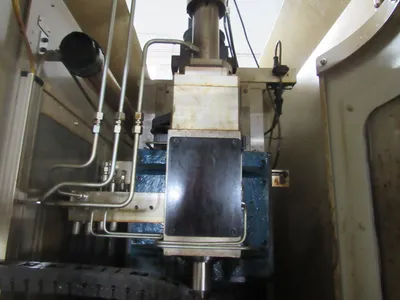

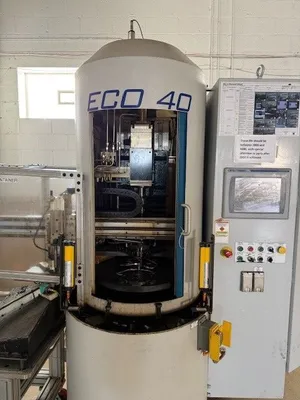

• AB Servo controlled ECO 40 mechanical expansion type precision spindles, 4.5 HP and capable of spinning up to 1700 rpm. Designed for post -process gauging and tool wear compensation

• AB Servo controlled spindle stroking system (ECO 40) with ability to adjust oscillation amplitude and frequency via HMI. Spindle drive 2.7 HP, Oscillation speed 30 m/m, 400 mm stroke.

• Hydraulic tool expansion system

• Hydraulic system to Nagel specifications. Includes Daikin hydraulic power pack

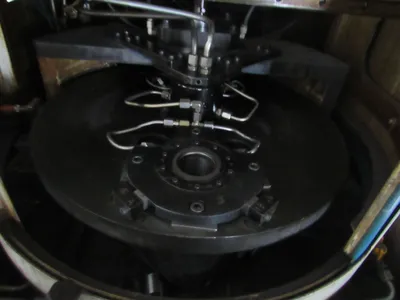

• AB Servo controlled 2 position rotary index table for accurate part positioning.

• Bijur/ Vogel centralized lubrication system to Nagel specifications, with 200 hours storage capacity. Low reservoir level and dirty filter faults.

Specifications are deemed accurate, however, subject to verification or prior sale.
