Used 2016 SUPFINA 470 | FINISHING MACHINES

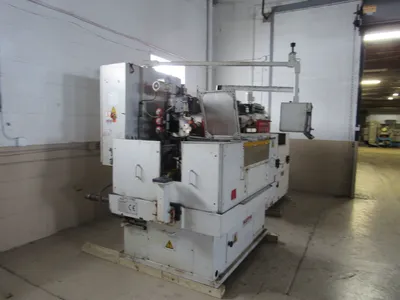

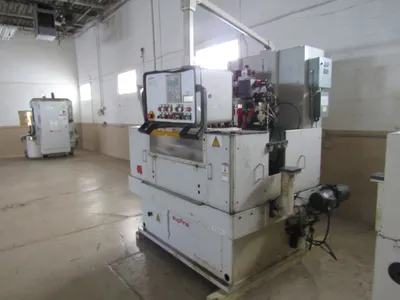

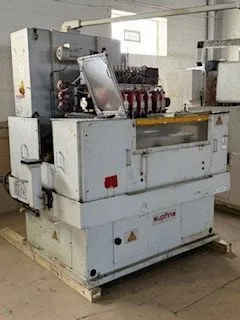

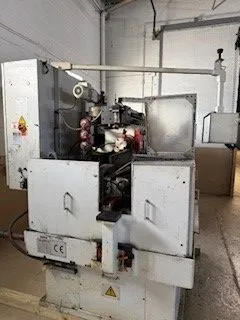

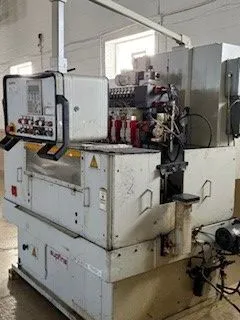

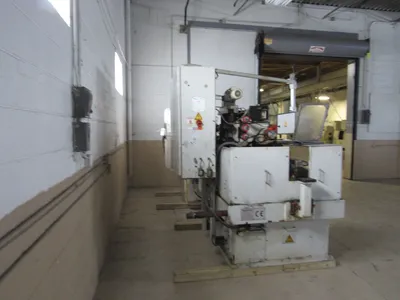

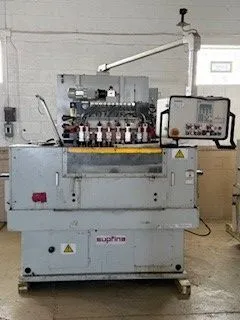

SUPFINA 470 SUPER FINISHER

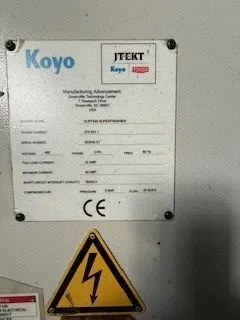

S/N 300845.01 YEAR: 2016

STANDARD SPECIFICATIONS
Workpiece Type Cylindrical Rings (Throughfeed)
Range Diameter Of The Workpiece 4-100mm
Speed Of The Workpiece Movement 2-5 m/min
Feed Direction Left To Right
Roller Working Length 900mm (35.4")
Roller Outside Diameter 125mm
Roller Angle / Taper 15° / 1°
Superfinishing Unit Length 900mm
Last Configured Workpiece Ø17 / 12.45 x 10.5mm Ring

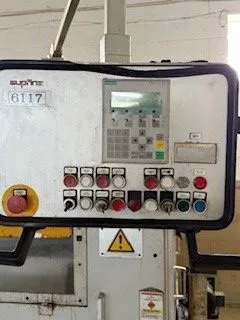

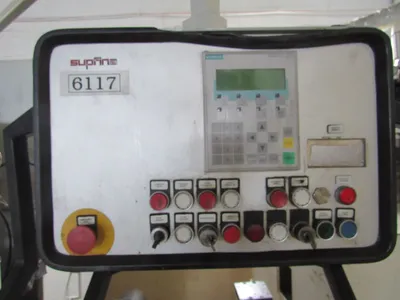

Control Siemens S7-200 w/ OP7 Panel
Operating Voltage 230/400V, 50Hz, 3-Phase
Control / Valve Voltage 24V DC

EQUIPPED WITH

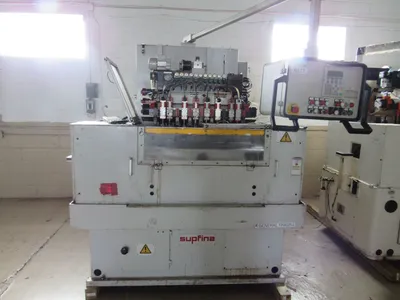

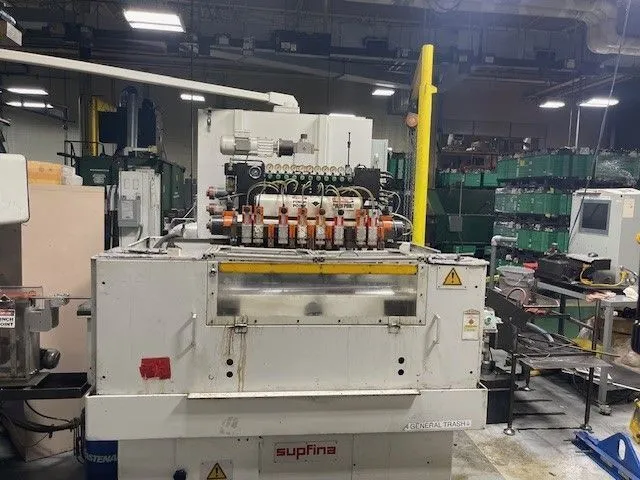

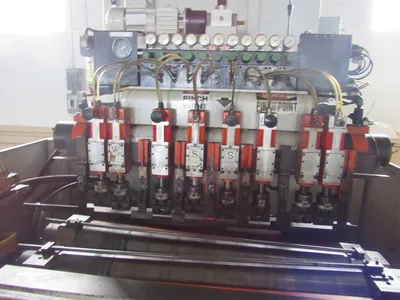

Superfinishing unit (L=900mm) with prism rail.
Device support with electric lift mechanism.
Amplitude monitoring system.
(2) Automatic starters.

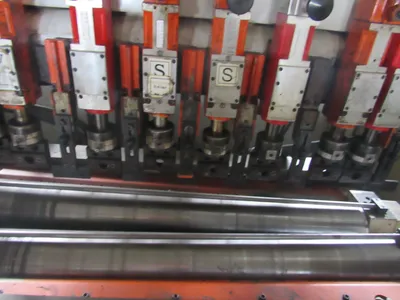

10 Stone guides, 10 stone holders and 6 hold-down devices.
Taper roller set (900mm) with split bearing blocks and external roller adjustment.
Frequency-controlled roller drive with spur gear transmission.
Hydraulic system with Hydac compact hydraulic clamping unit.
Bosch pneumatic system.
Coolant supply and coolant return/drain.
Splash guard (half enclosure).

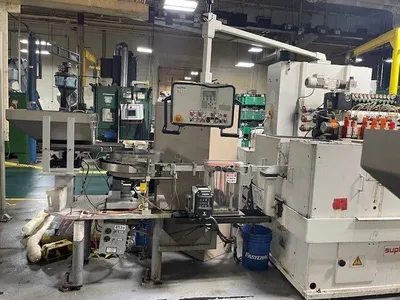

Infeed section with double belt feeding device and mounting table.

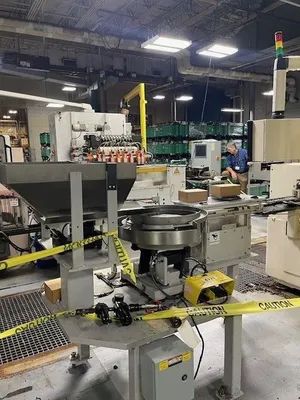

Hensle vibratory feeder, linear vibratory track and inclined conveyor with pre-metering.
Outfeed section with mounting table and outfeed rail for Ø12-25mm parts.
Measuring tools, supplementary gauges and gauge blocks.

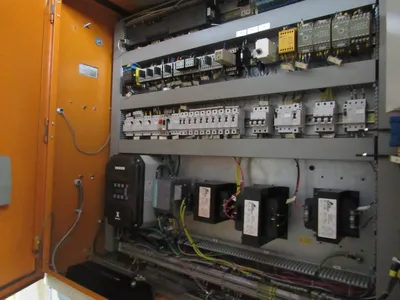

Stand alone electrical.
Operating manuals and drawings (French).

Specifications are deemed accurate, however, subject to verification or prior sale.
