Used 2016 SUPFINA 460 | FINISHING MACHINES
Have one to sell?
ConditionUsed
1 available

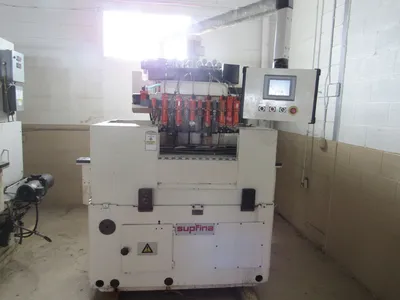

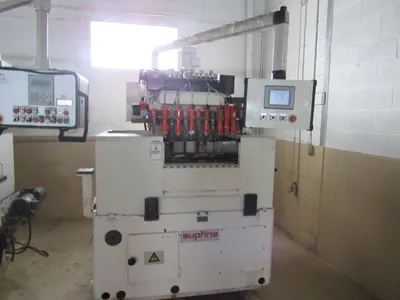

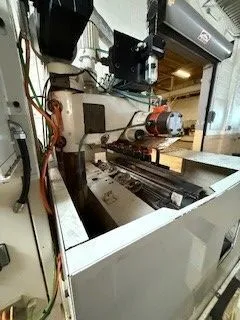

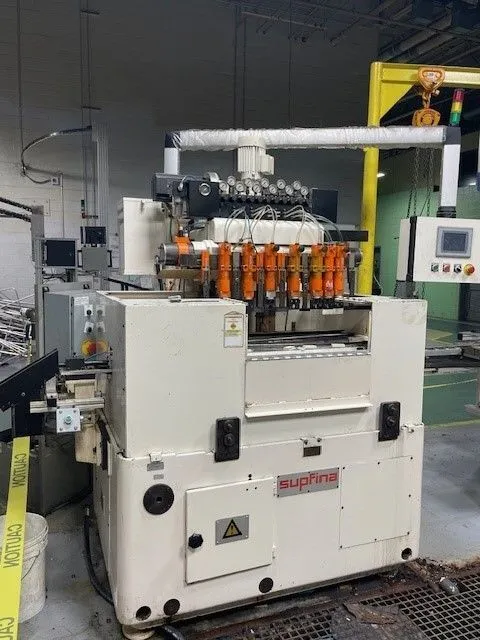

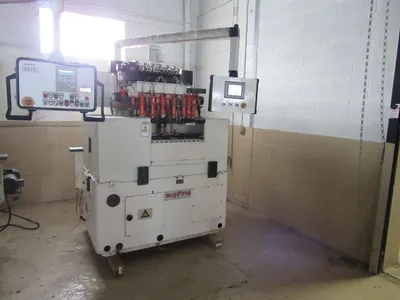

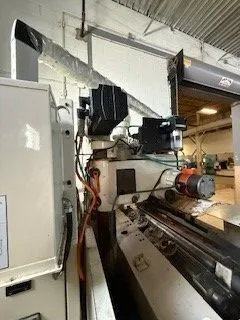

SUPFINA 460 Super Finisher, made in 2016. Features 7-8 station stone guides, 31” taper rollers, push button station, HMI screen, and Siemens controls.
SUPFINA 460 SUPER FINISHER

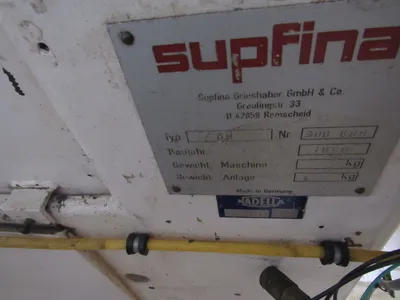

S/N 300-809 YEAR: 2016
STANDARD SPECIFICATIONS
Workpiece Type Support Rollers (Throughfeed)
Range Diameter Of The Workpiece 4-100mm
Speed Of The Workpiece Movement 2-3 m/min
Feed Direction Right To Left
Roller Working Length 900mm (35.4")
Roller Outside Diameter 125mm
Roller Angle / Taper 15° / 1°
Roller Material 1.2379 (X115MoCrV12.1)
Superfinishing Unit Length 900mm
Last Configured Workpiece Ø22 / 13 x 8mm Support Roller
Control Siemens S5-100U
Operating Voltage 220/380V, 50Hz, 3-Phase
Control Voltage 220V, 50Hz
Valve Voltage 24V DC
EQUIPPED WITH

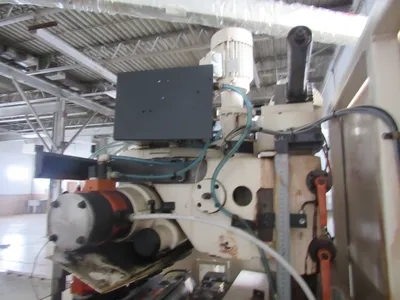

Oscillation drive / superfinishing unit (L=900mm) with prism rail.
Device holder with manual lift and superimposed stroke movement.
(2) Automatic starters.

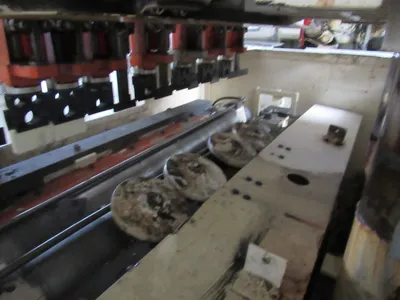

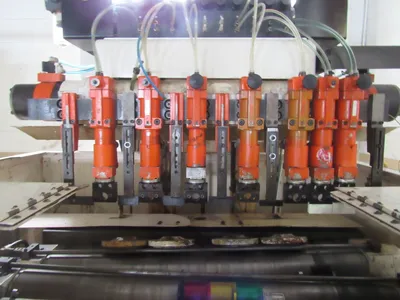

10 Stone guides, 10 stone holders and 6 hold-down clamps.

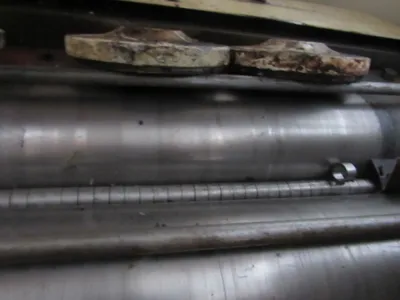

Taper roller set (900mm) with split bearing blocks and external roller adjustment.
Roller drive with spur gear transmission.
Bosch pneumatic system.
Flushing medium supply and drain with 24V DC seat valve.
Filter cart FW 91.13 with filter cartridges.
Splash guard.
Infeed section with mounting table, infeed conveyor belt and infeed rails.
Outfeed section with mounting table, outfeed rails and splash tray.
Monitor/detector, probe with dial indicator and sensing strip.
Measuring stand, measuring tools, measuring edges and supplementary gauges.

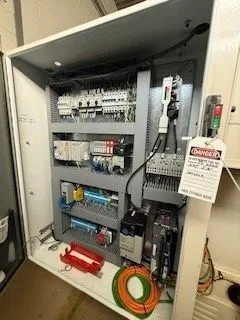

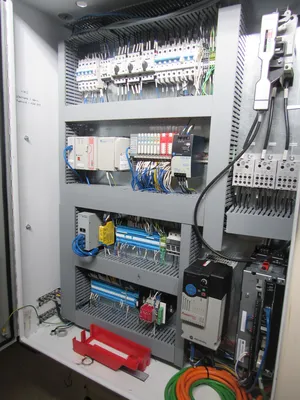

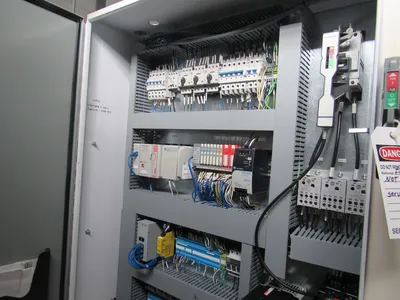

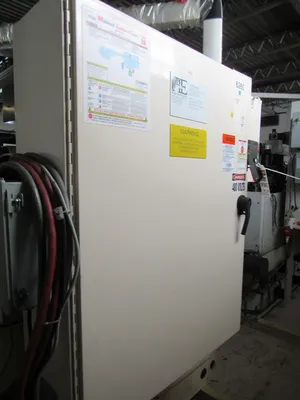

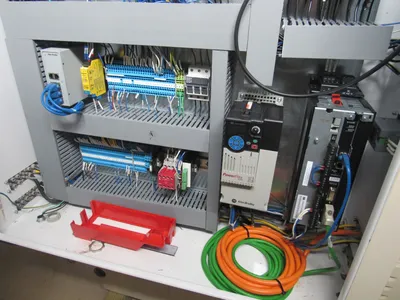

Stand alone electrical.

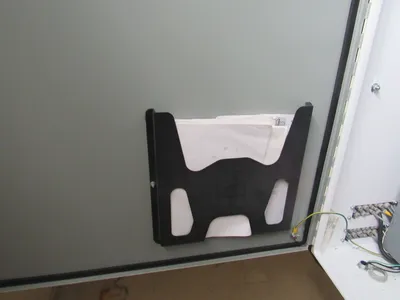

Operating manuals and drawings (French).
Specifications are deemed accurate, however, subject to verification or prior sale.
