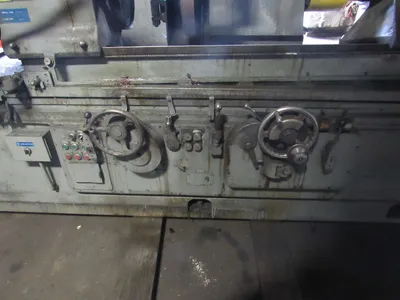

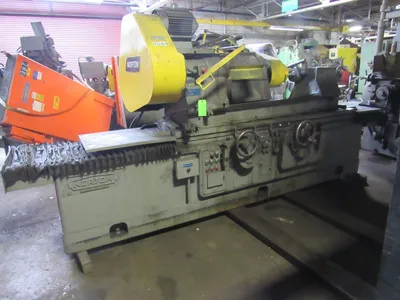

1963 NORTON 24 x 48 LCTU

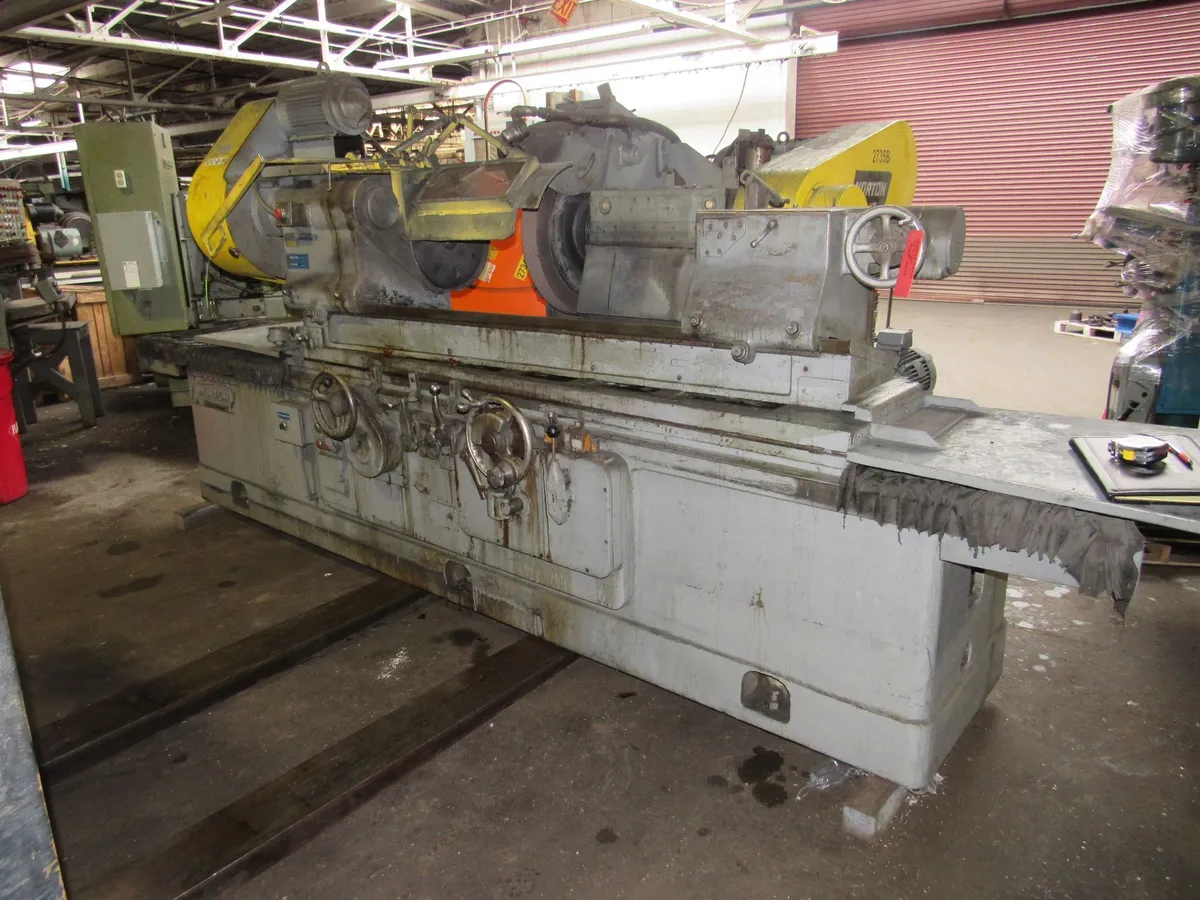

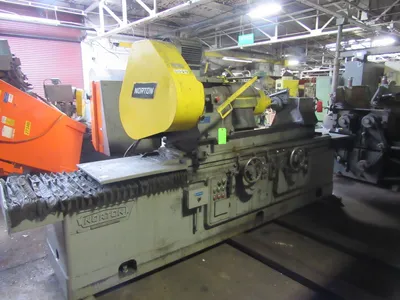

24" x 48" NORTON LCTU PLAIN CYLINDRICAL

S/N 28635 Year: 1963

STANDARD SPECIFICATIONS
Max. diameter of work ground................. 24"
Swing over table max......................... 24 3/4"
Distance between centers, max................ 48"
Grinding wheel guard size.................... 36" x 5" x 12"
Table speeds infinite........................ 2 to 240 IPM
Grinding wheel mount size.................... 2 1/2 - 3 1/2" x 12"
Max. taper (inches per foot on diameter)..... 2"
Max. plunge stroke........................... 4"
Approximate weight........................... 22,000 lbs.

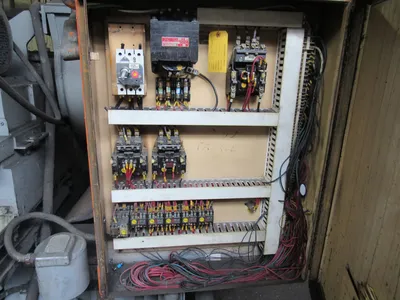

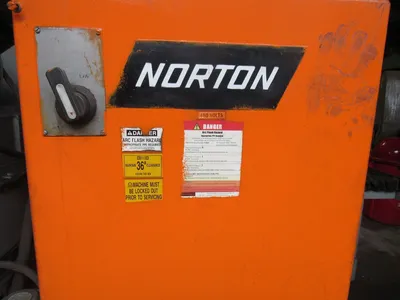

ELECTRICS
Wheel head motor............... 1 1/2 HP 3/50/220/380 950 RPM
Hydraulic motor................ 1 1/2 HP 3/50/220/380 970 RPM
Spindle/wheel slide motor...... 25 HP 3/50/220/380 970 RPM
Coolant motor....... 1/4 HP 3/50/60/208/220/380/440 1425/1725 RPM

EQUIPPED WITH

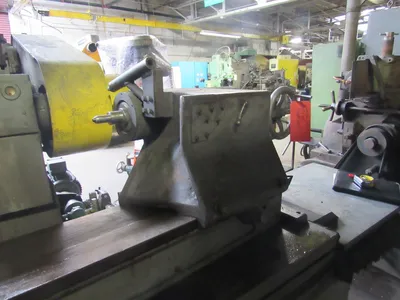

Machine is equipped with heavy duty wheel slide, standard dead center head stock, lever operated tail stock, hydraulic plunge infeed, hydraulic table travel, automatic adjustable infeed for traverse grinding, timer,& wheel mount.

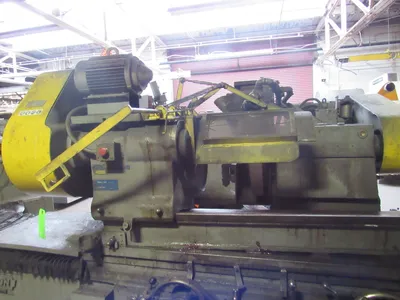

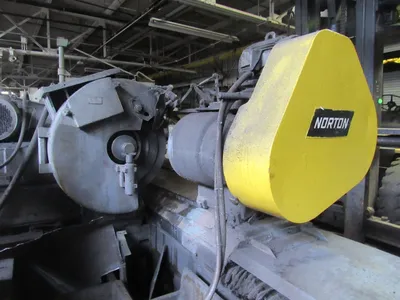

The advantage of the heavy duty wheel slide is that it allows the use of a large diameter grinding wheel and/or wider width grinding wheel than normally used. The standard wheel diameter is 30 inches and normal width does not usually exceed 5 inches.

Specifications are deemed accurate, however, subject to verification or prior sale.
