Used 1978 BLANCHARD 32D-60 | GRINDERS, SURFACE, ROTARY TYPE - VERTICAL
Have one to sell?
ConditionUsed
1 available

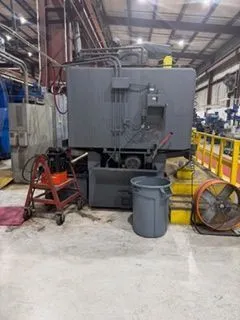

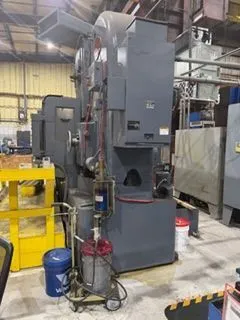

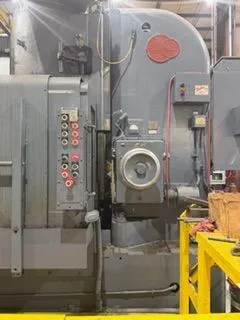

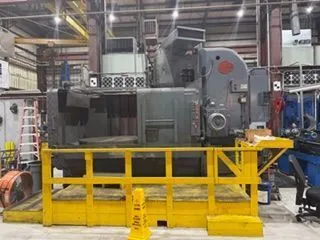

BLANCHARD 32D-60 rotary surface grinder, used, vertical type with a 60" magnetic chuck, 72" swing, 100 HP, and 32" grinding wheel. Built in 1978, includes coolant tank, stand-alone electrical panel, and standard motors.
32D-60 BLANCHARD ROTARY SURFACE GRINDER

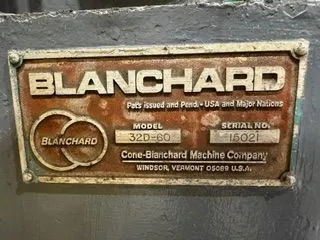

S/N 15021 Year: 1978
STANDARD SPECIFICATIONS
Range
72" Swing; 30" vertical range over chuck with new wheel segments.
KVA Req’d: 100 HP – 125 KVA.

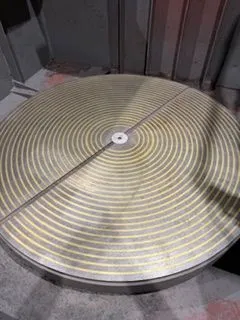

Work Table: (Blanchard one piece steel magnetic chuck) 60" diameter magnetic chuck, maximum unbalanced work load to 10,000 lbs.
Feed: Vertical down feed by hand or power. Power feed variable from .004" to .080" per minute.
Coolant Supply: External coolant supply required 150 GPM approximate flow rate.
Floor Space: 186" x 84" x 134" maximum height, plus electric panel 63’ wide x 78" high x 21" deep.
Weight: 34,000 lbs. with standard equipment.
Standard Motors: 100 HP grind; 10 HP chuck rotation, 2 HP head traverse, 35 lb/ft torque table traverse; 1/3 HP feed. 100 HP grind motor optional.
MISC.
Coolant tank & pump.
Stand alone electrical panel.
Specifications are deemed accurate, however, subject to verification or prior sale.
