Used BRYANT UL2 | GRINDERS, INTERNAL
Have one to sell?
ConditionUsed
1 available

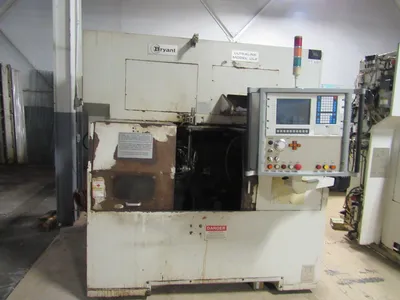

Bryant UL2 internal grinder, used condition. Features include 7" swing, 5.5" max grinding bore, 3" stroke, 10" long travel, -26° workhead swivel, 1.5 workhead power, 1850 workhead speed, and a dresser. Ideal for precise internal grinding tasks.

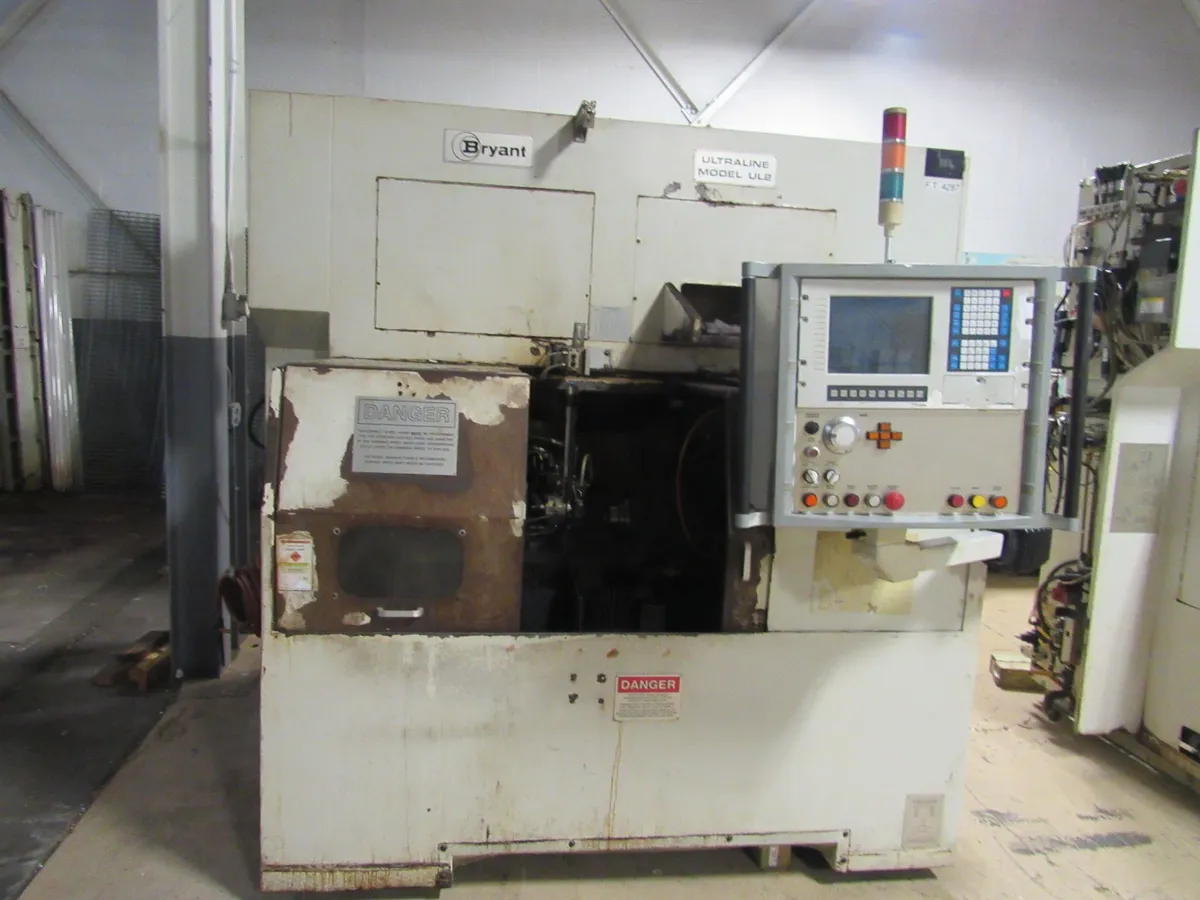

BRYANT UL2 INTERNAL GRINDER
S/N W-17744
STANDARD SPECIFICATIONS
Minimum Bore.............................0.4”
Max Swing(Chucker).......................7”
Max Bore(Shoe Centerless)................5.5”
Max Bore Length..........................3”
Max Z-Axis Travel........................10”
Max X-Axis Travel........................2”
X-Axis Resolution........................0.000004”
Z-Axis Resolution........................0.000016”
Max X-Axis Feedrate......................1,800 ipm
Max Z-Axis Feedrate......................520 ipm
Workhead Angular Adjustment..............-26 Degrees
Max Work Speed(Shoe Centerless...........1,850 RPM
Max Spindle Speed........................120,000 RPM
Work Drive Motor(Shoe Centerless)........1.5 HP
Weight...................................10,500 LBS
EQUIPPED WITH
15mm Roll shoe.
PMAC – Motion card.

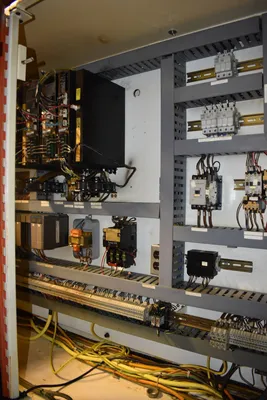

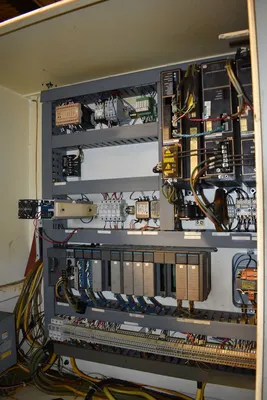

Allen Bradley PLC & I/O.
Kollmorgan drive & motors.
Volkman spindle drive.
HD104 rotary cup dresser.
CBN capable wheel.
Specifications are deemed accurate, however, subject to verification or prior sale.
Bryant UL2 internal grinder, used condition. Features include 7" swing, 5.5" max grinding bore, 3" stroke, 10" long travel, -26° workhead swivel, 1.5 workhead power, 1850 workhead speed, and a dresser. Ideal for precise internal grinding tasks.
Imperial
| Swing | 7" |
| Max Grinding Bore | 5.5" |
| Stroke | 3" |
| Travel-Long | 10" |
| Workhead Swivel | -26 |
| Workhead Power | 1.5 hp |
| Workhead Speed | 1,850 RPM |
| Dresser | Yes |
| Control | CNC |
| Weight | 10500 |
BRYANT UL2 INTERNAL GRINDER
S/N W-17744
STANDARD SPECIFICATIONS
Minimum Bore.............................0.4”
Max Swing(Chucker).......................7”
Max Bore(Shoe Centerless)................5.5”
Max Bore Length..........................3”
Max Z-Axis Travel........................10”
Max X-Axis Travel........................2”
X-Axis Resolution........................0.000004”
Z-Axis Resolution........................0.000016”
Max X-Axis Feedrate......................1,800 ipm
Max Z-Axis Feedrate......................520 ipm
Workhead Angular Adjustment..............-26 Degrees
Max Work Speed(Shoe Centerless...........1,850 RPM
Max Spindle Speed........................120,000 RPM
Work Drive Motor(Shoe Centerless)........1.5 HP
Weight...................................10,500 LBS
EQUIPPED WITH
15mm Roll shoe.
PMAC – Motion card.
Allen Bradley PLC & I/O.
Kollmorgan drive & motors.
Volkman spindle drive.
HD104 rotary cup dresser.
CBN capable wheel.
Specifications are deemed accurate, however, subject to verification or prior sale.
