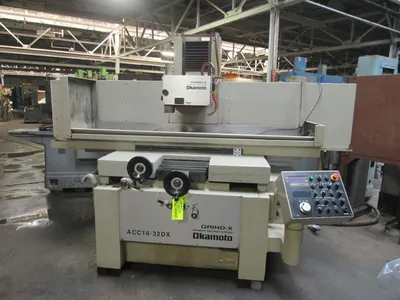

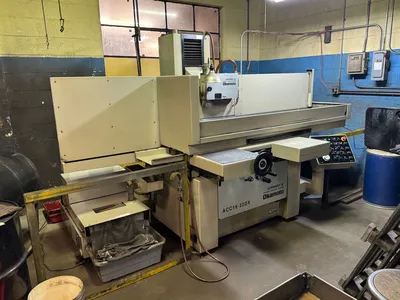

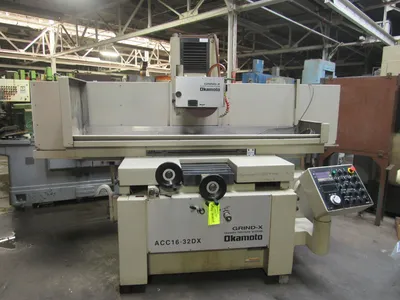

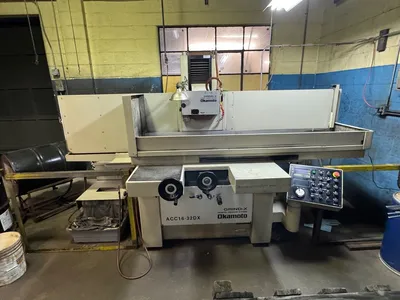

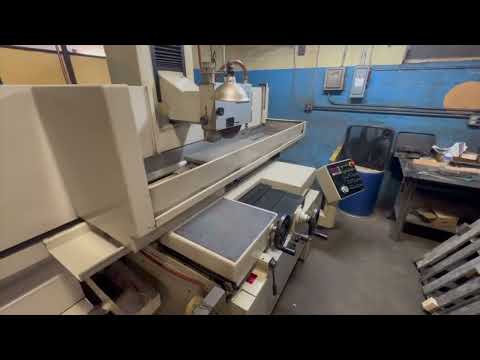

OKAMOTO ACC-16-32DX surface grinder, 2010 model. Used condition, with a 16" x 33.5" table and horizontal operation. Features a 5 HP motor, 1.5" grinding wheel width, and 14" wheel diameter. Ideal for precision grinding tasks.

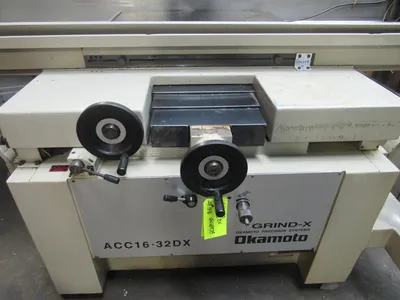

16-32 DX ACC OKAMOTO HORIZONTAL SURFACE GRINDER

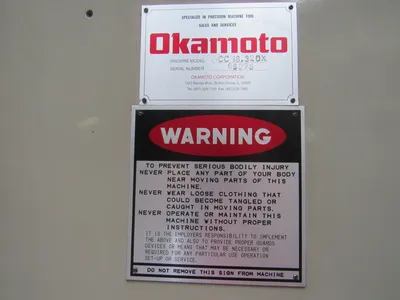

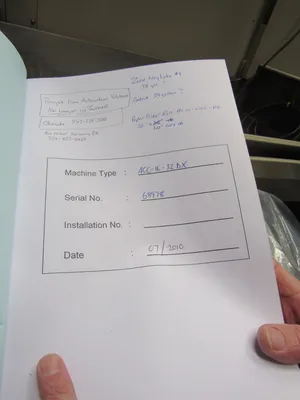

S/N 68978 YEAR: 2010

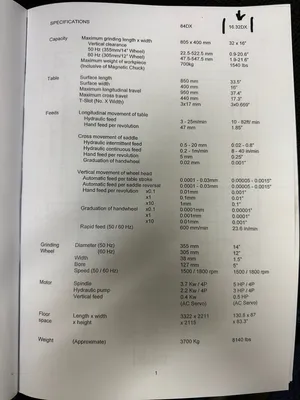

STANDARD SPECIFICATIONS
CAPACITY
Max Grinding Length.........................32”
Width Vertical Clearance....................16”
Max Workpiece Weight........................1540 LBS

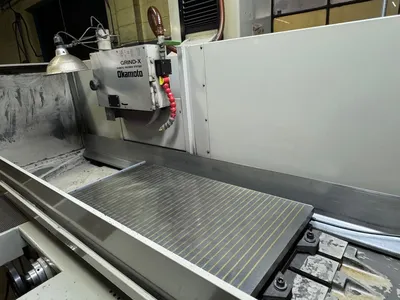

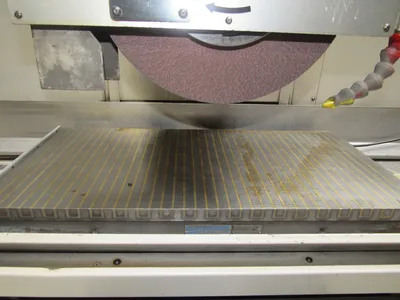

TABLE
Surface Length..............................33.5”
Surface Width...............................16”
Max Longitudinal Travel.....................37.4”
Max Cross Travel............................17.3”
T-Sot (No. X Width).........................3x0.669”
FEEDS
LONGITUDINAL MOVEMENT OF TABLE
Hydraulic Feed..............................10-82ft/min
Hand Feed Per Revolution....................1.85”
CROSS MOVEMENT OF SADDLE
Hydraulic Intermittent Feed.................0.02-0.8”
Hydraulic Continuous Feed...................8-40 in/min
Hand Feed Per Revolution....................0.25”
Graduation Of Handwheel.....................0.001”
VERTICAL MOVEMENT OF WHEEL HEAD
Automatic Feed Per Table Stroke.............0.00005-0.0015”
Automatic Feed Per Saddle Reversal..........0.00005-0.0015”
Hand Feed Per Revolution x0.1...............0.001”
x1.................0.01”
x10................0.1”
Graduation Of Handwheel x0.1...............0.00001”
x1.................0.0001”
x10................0.001”
Rapid Feed (50/60 Hz).......................23.6 in/min

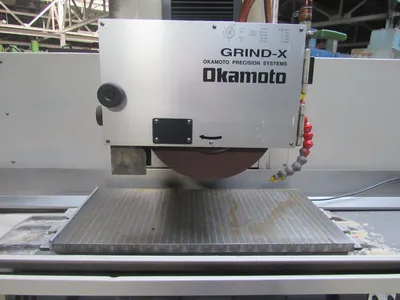

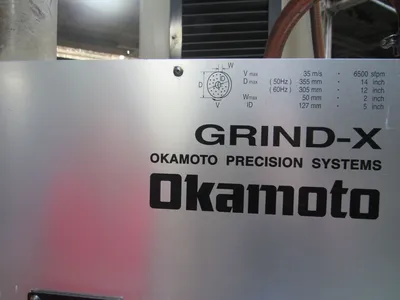

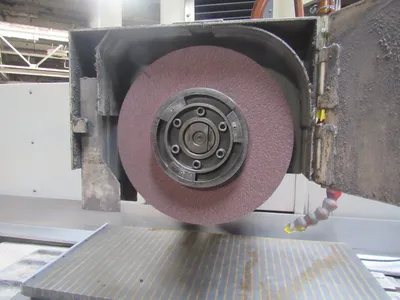

GRINDING WHEEL

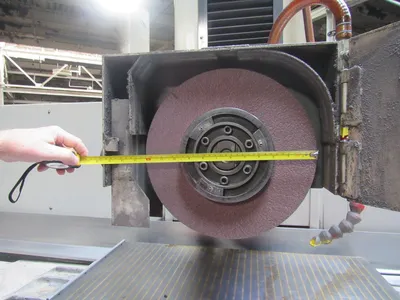

Diameter (50 Hz)............................14”
(60 Hz)............................12”
Width.......................................1.5”
Bore........................................5”
Speed(50/60 Hz).............................1500/1800 RPM
MOTOR
Spindle.....................................5 HP/4P
Hydraulic Pump..............................3 HP/4P
Vertical Feed...............................0.5 HP
(AC Servo)

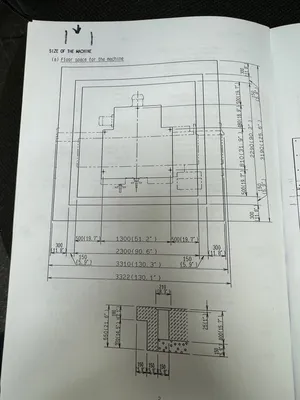

FLOOR SPACE

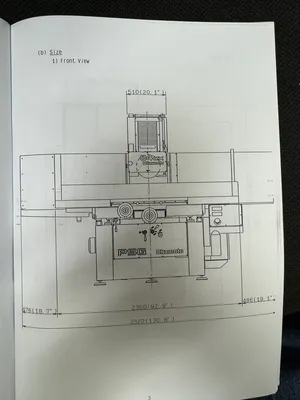

Length x Width x Height..................130.8 x 87 x 83.3”
WEIGHT
Approximate..............................8140 LBS
Specifications are deemed accurate, however, subject to verification or prior sale.
