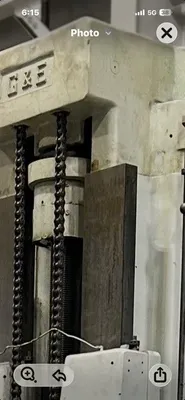

GOULD & EBERHARDT 72H

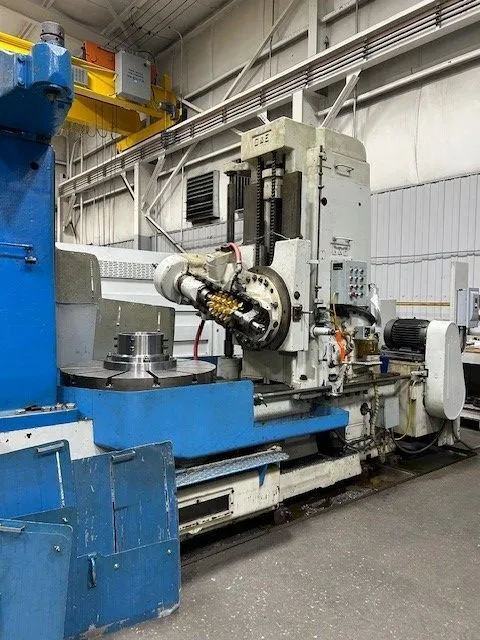

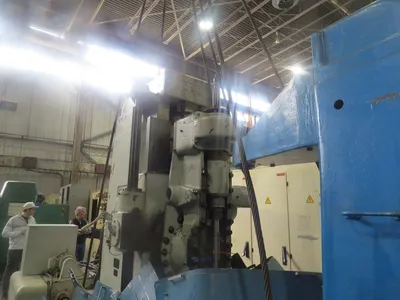

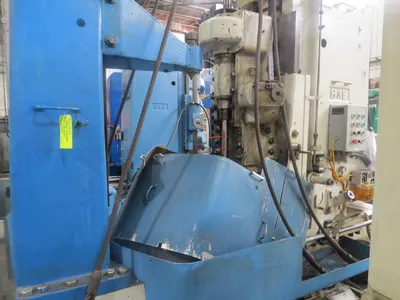

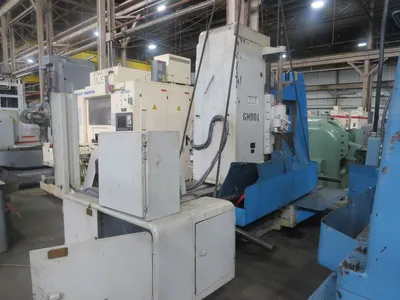

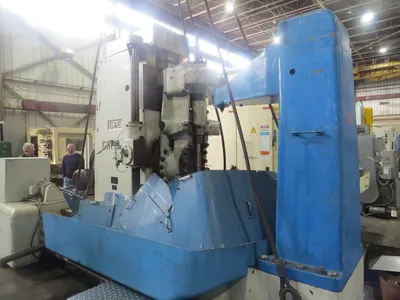

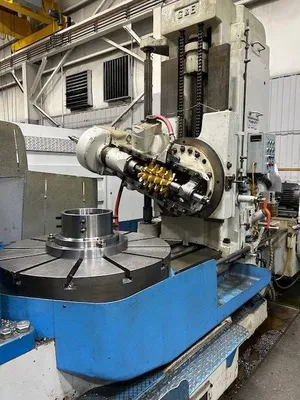

GOULD & EBERHARDT 72H VERTICAL GEAR HOBBER

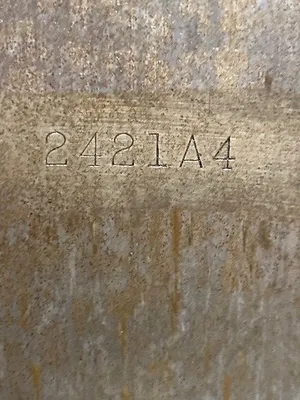

S/N 2421A4 REBUILT: 2016

STANDARD SPECIFICATIONS
Maximum DP in Steel................................1.5 DP
Face Capacity Spur Pinions and Gears...............24"
Face Capacity 45 Degree Helical Gears..............18"
Maximum Diameter Spur Gear With Support............48"
Maximum Diameter Spur Gear Without Support.........90"
Maximum Diameter Helical Gear w/o Sup (45 Degrees)..72"
Minimum Centers Work & Hob Arbors..................4"
Maximum Diameter Hob...............................10.75"

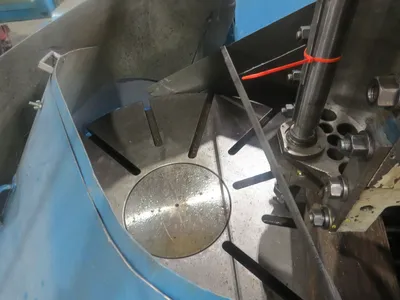

Diameter of Work Table.............................40"
Diameter of Index Worm Gear........................48"
Index Range Including Primes.......................15 - 100
Index Range Excluding Primes.......................100-400
Number of Hob Speeds...............................14
Hob Speed Ranges..................................6-100 RPM
Drive Pulley......................................600 RPM
Number of Feeds...................................12
Feed Range..................................... .03 - .200"
Motor HP Requirements, Machine....................15 HP
Motor HP Requirements, Traverse...................5 HP
Motor HP Requirements, Coolant....................3/4 HP
Approximate Dimensions...................207" x 90" x 115"
Approximate Weight.......................38,000 LBS

EQUIPPED WITH
Updated Electrics

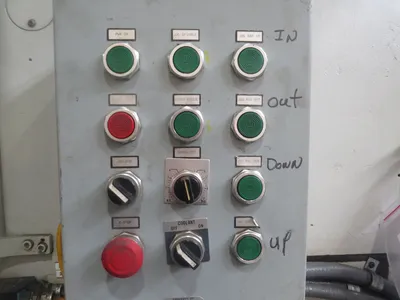

Push Button Controls
Differential

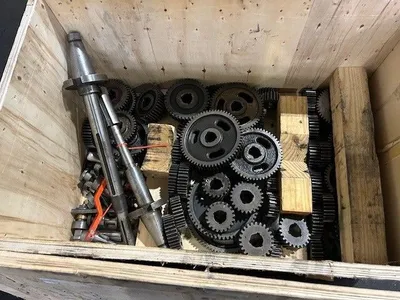

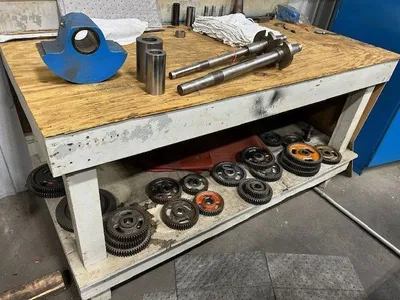

(3) Hob Arbors (2", 1.750", 1.5")

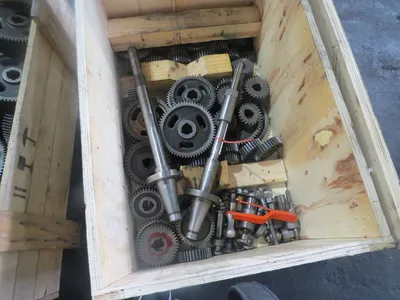

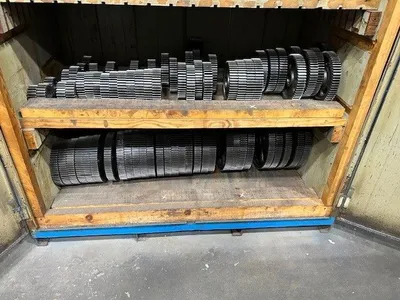

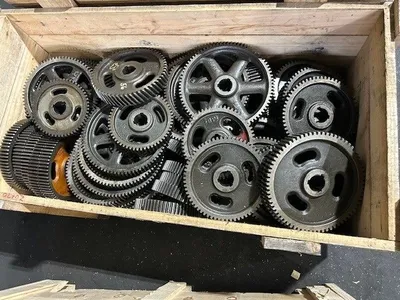

Change Gears
Tailstock W/Center
Coolant Pump

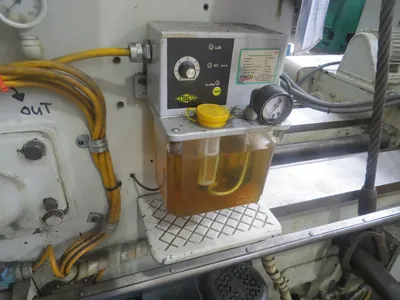

TRICO Auto Lube

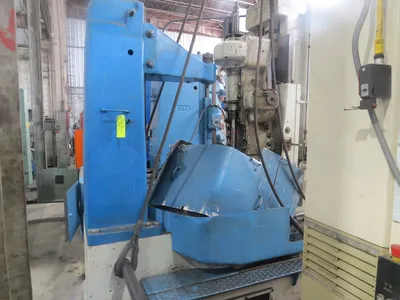

Splash Guards

Specifications are deemed accurate, however, subject to verification or prior sale.
