Used 1944 CINCINNATI #3 EA | GRINDERS, CENTERLESS

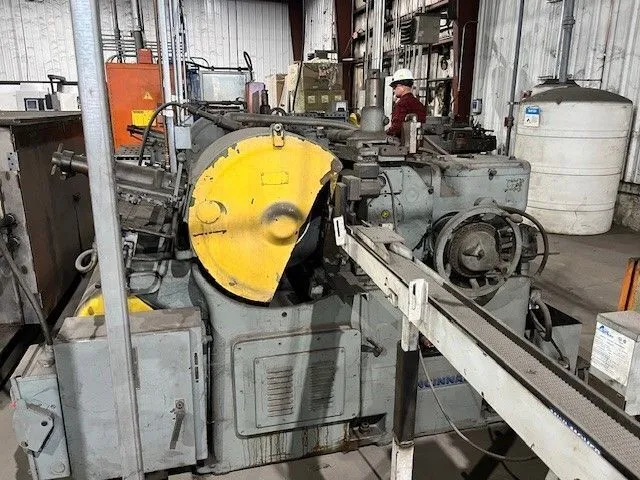

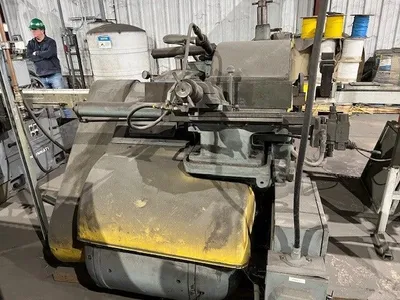

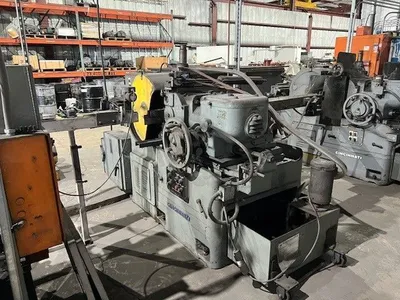

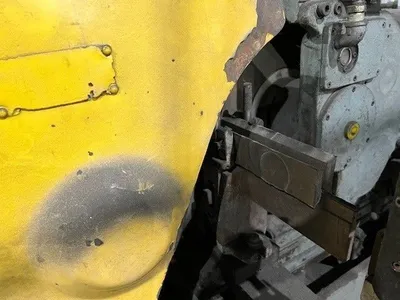

#3 "EA" CINCINNATI CENTERLESS GRINDER

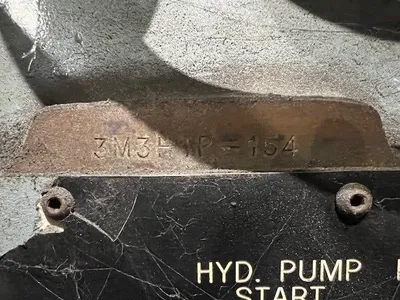

S/N 3M3H1P-154 YEAR: 1944

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered, not
included in price.)
Standard thru feed work rest.................. 1/2" to 3" dia.
Heavy duty thru feed work rest................ 2" to 6" dia.
Minimum w/special work rest................... 1/4" dia.
Standard infeed work rest..................... 1/2" to 6" dia.

GRINDING WHEEL SPINDLE
Made of heat treated chrome nickel steel, bearings diameters lapped.
Size, front & rear bearings............. 4 3/4" dia. x 7 1/2" long

REGULATING WHEEL SPINDLE
Made of heat treated chrome nickel steel.
Size, plain bearing at front............ 4" dia. x 5 1/2" long
Size, plain bearing at rear............. 2 5/8" dia. x 3 3/4" long

WHEEL (Not supplied)
Grinding wheel............... 24" dia. x 12" hole x 8" face
Regulating wheel............. 14" dia. x 5" hole x 8" face

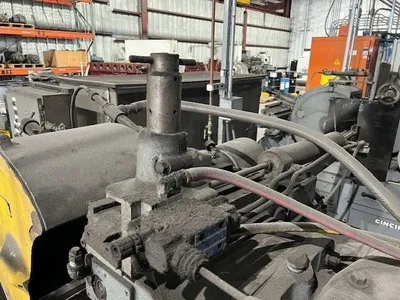

WHEEL TRUING EQUIPMENT
Hydraulic contour truing on grinding wheel.
Hydraulic type truing on regulating wheel (Non-Profile).

LUBRICATION
All spindle bearings – automatic.
Other bearings individual fittings.

MOTOR & CONTROLS
Grinding wheel drive.......................... Multiple V belts
Regulating wheel drive........................ Worm and gear
Grinding wheel motor.......................... 30 HP
Regulating wheel motor........................ 2 HP
Lubricating pump & motor...................... 3/4 HP

COOLANT SUPPLY
Pump capacity................................. 25 gallons
Tank capacity................................. 76 gallons

FLOOR SPACE
Distance from floor to center of wheels....... 43 1/2"
Approximate without fixtures.................. 96 1/4" x 62"
Approximate weight............................ 11,500 lbs.

EQUIPPED WITH

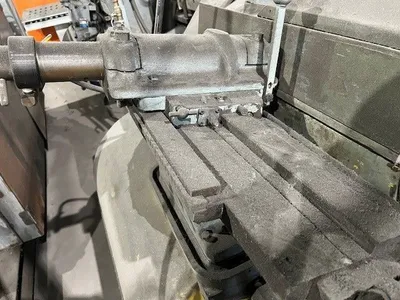

8” Thrufeed workrest w/ blades & guides.
Attached panel.
Coolant system.

Specifications are deemed accurate, however, subject to verification or prior sale.
