CINCINNATI R-78 Cylindrical Plain Grinder, 1975. Size Capacity: 10x31, Swing: 10, Centers: 31, Plain Head, Grinding Wheel Dia: 16, Wheel Power: 5.5, Plunge capability. Ideal for precision grinding needs.

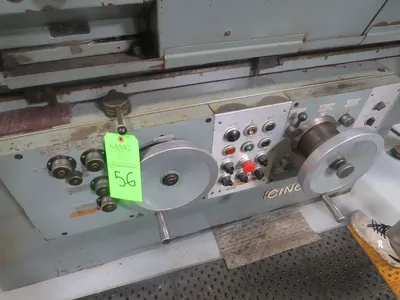

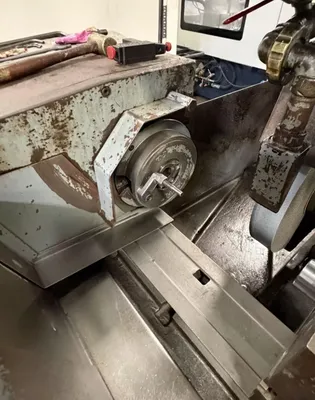

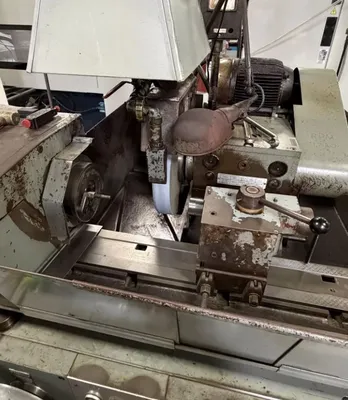

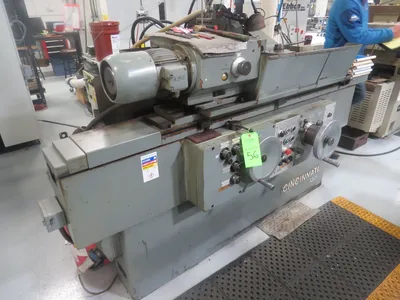

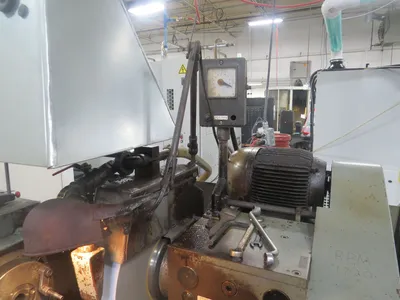

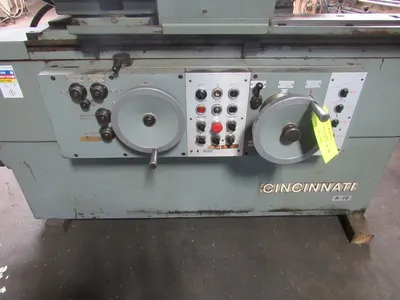

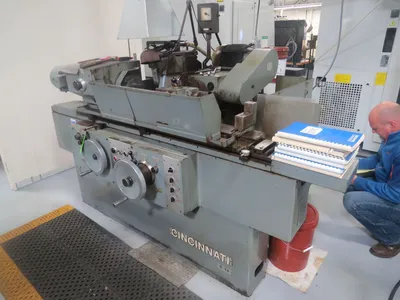

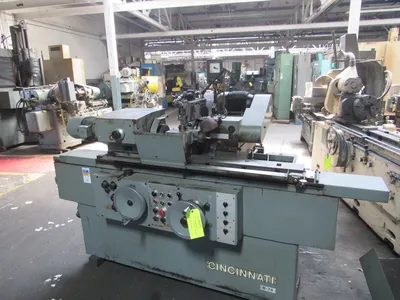

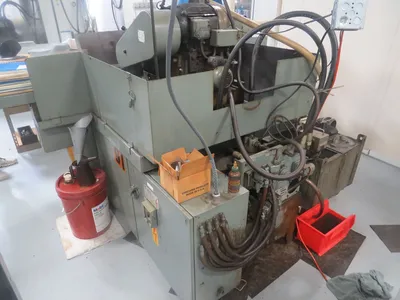

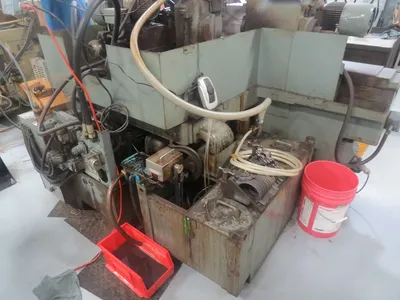

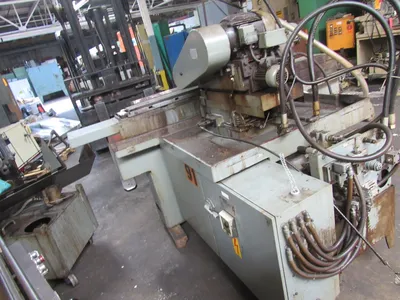

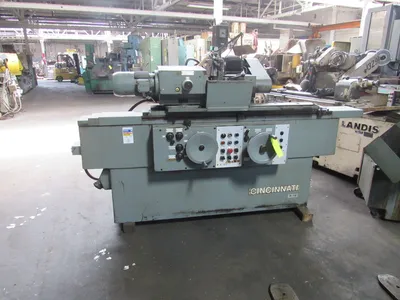

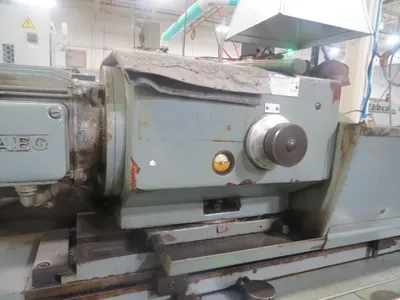

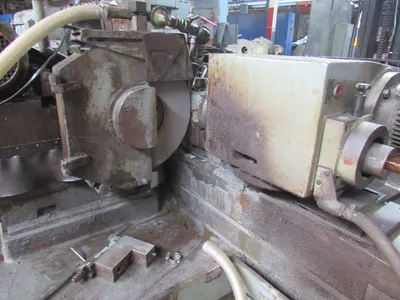

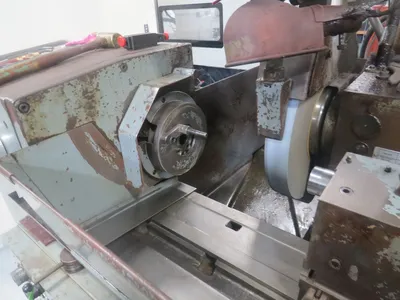

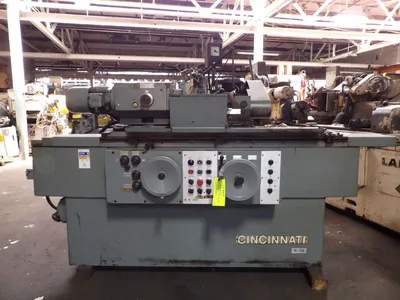

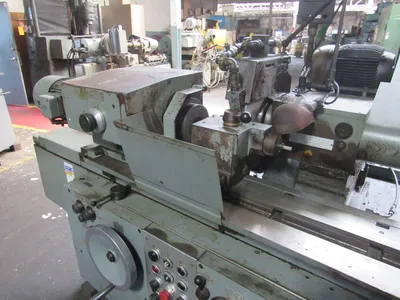

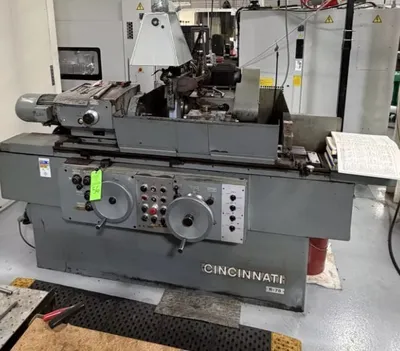

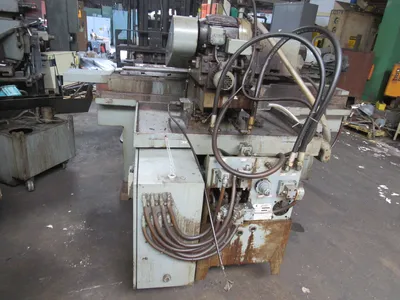

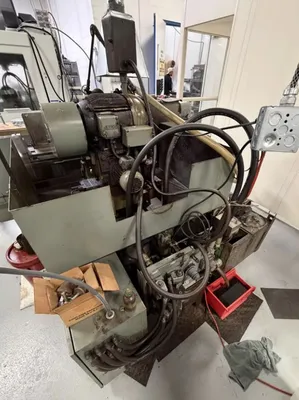

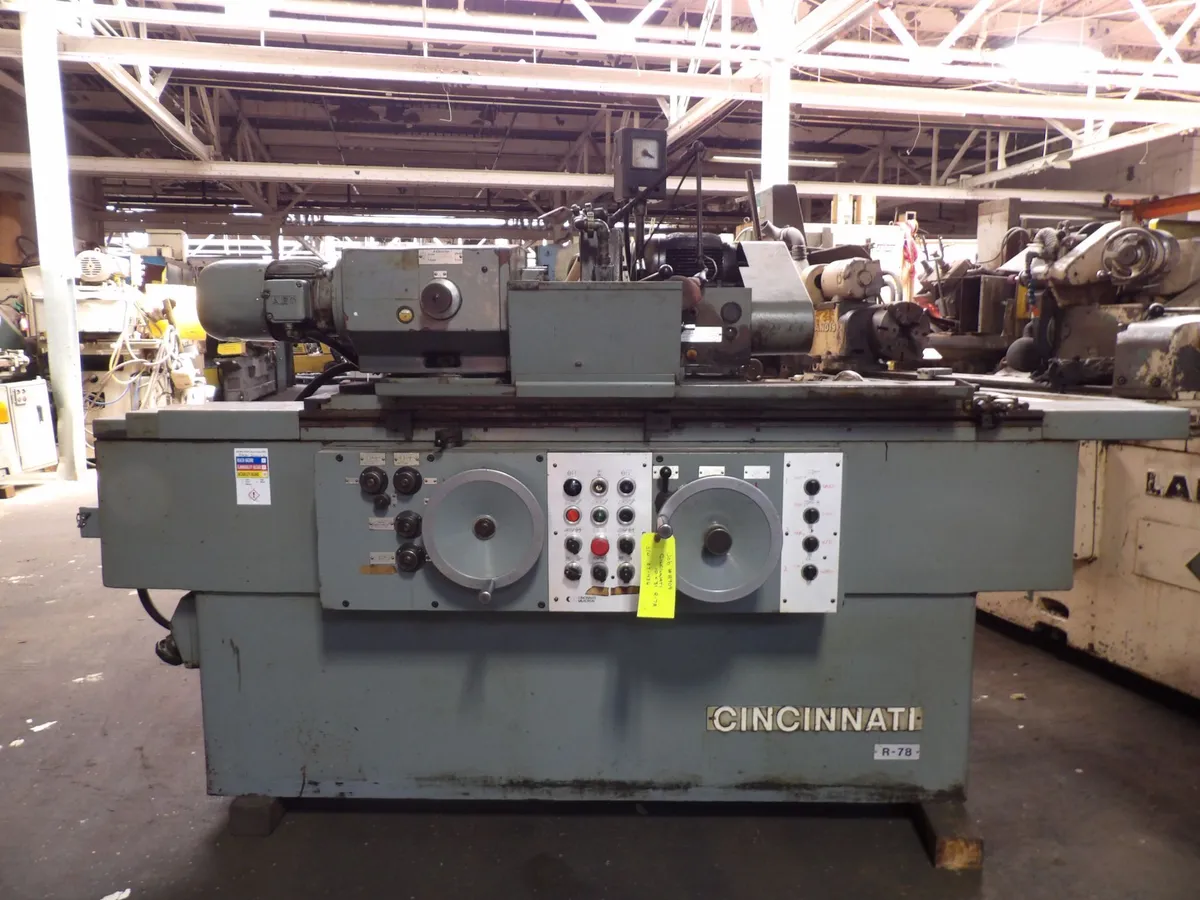

10 x 31 R-78 CINCINNATI PLAIN CYLINDRICAL GRINDER
S/N 27436 Year: 1975
STANDARD CATALOG SPECIFICATIONS
Maximum swing over table.......................... 10"
Maximum distance between centers.................. 31"
Max. weight of work piece between centers......... 165 lbs.
Max. weight of chuck held work piece.............. 44 lbs.
Table traverse speeds (inf. vari.)................ 2 - 240 IPM
Spindle bore/Spindle nose......................... 1 1/2"
Min. movement necessary to reverse table.......... 5/32"
Maximum table swivel.............................. 10 deg.
Head stock speeds (inf. vari.)................... G.E. vari drive
Head stock swivel................................. 0 - 90 deg.
Wheel head rapid advance stroke................... 2"
Wheel head man. infeed (per rev. of hand wheel)... .050"
Whlhd. auto pick feed of dia. (8 steps)........... .0002 - .0016
Grinding wheel size............................... 16" x 2" x 5"
EQUIPPED WITH
Automatic pick feed at table reversal.
Automatic lubrication.
Wheel head rapid advance and retract stroke.
Coolant.
Plunge.

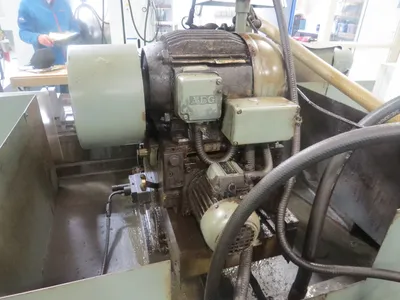

Motor............................................. 5 1/2 HP
Electrics......................................... 3/60/460v
Condition......................................... Very good
Specifications are deemed accurate, however, subject to verification or prior sale.
