Used 1978 SMTW 14x40 / 1000 | GRINDERS, CYLINDRICAL - PLAIN

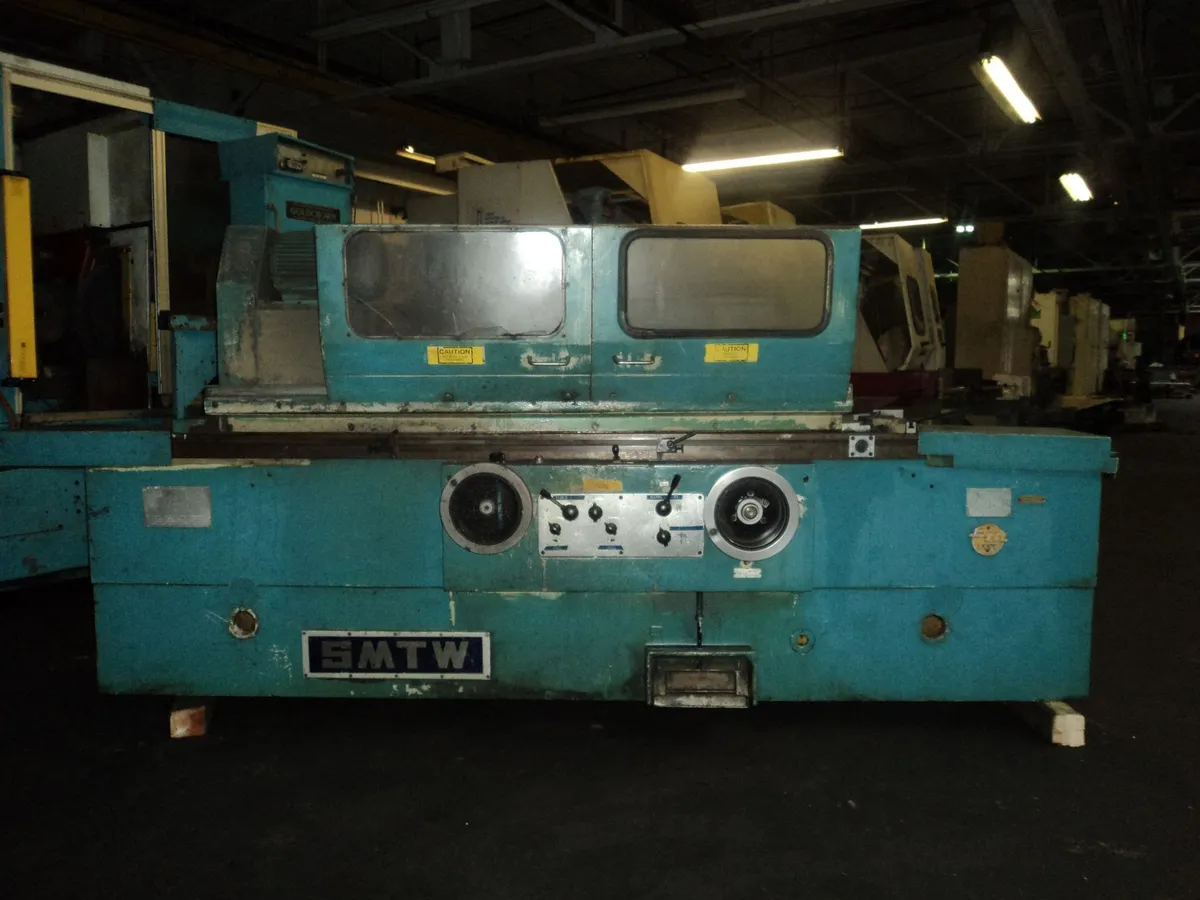

SMTW PLAIN CYLNIDRICAL GRINDER
Model M1332B/1000

S/N M1332B

STANDARD SPECIFICATIONS
Swing over table……………………………………………………... 14”
Distance between centers…………………………………………….. 40”
Grinding diameter - with steady rest – min./max……………….…… 0.393” – 2.3622”
- without steady rest – min./max……………….... 0.31496”-12.598”
Max. upper work table swing angle clockwise………………………. 3°
Max. longitudinal work table travel………………………………….. 41.3385”
Wheel dimensions OD x W x ID – max……………………………… 600 x 75 x 305mm
- worn……………………………… 450 x 75 x 305mm
Wheel peripheral speed……………………………………………….. 35 m/s
Wheel spindle speed………………………………………………….. 1100 r/min
Max. lead screw travel………………………………………………… 231mm
Rapid advance and withdrawal amount……………………………….. 50mm
Wheel head displacement per rev. of hand wheel coarse/fine………… 2/0.5mm
Wheel head displacement per div. of hand wheel coarse/fine………… 0.01/0.0025mm
Total motor power…………………………………………………….. 11 kilowatts
Tail stock dresser.
Dead center head stock.
Auto feed.

Specifications are deemed accurate, however, subject to verification or prior sale.
