Used 2016 STUDER S33 CNC | GRINDERS, CYLINDRICAL - UNIVERSAL CNC & N&C

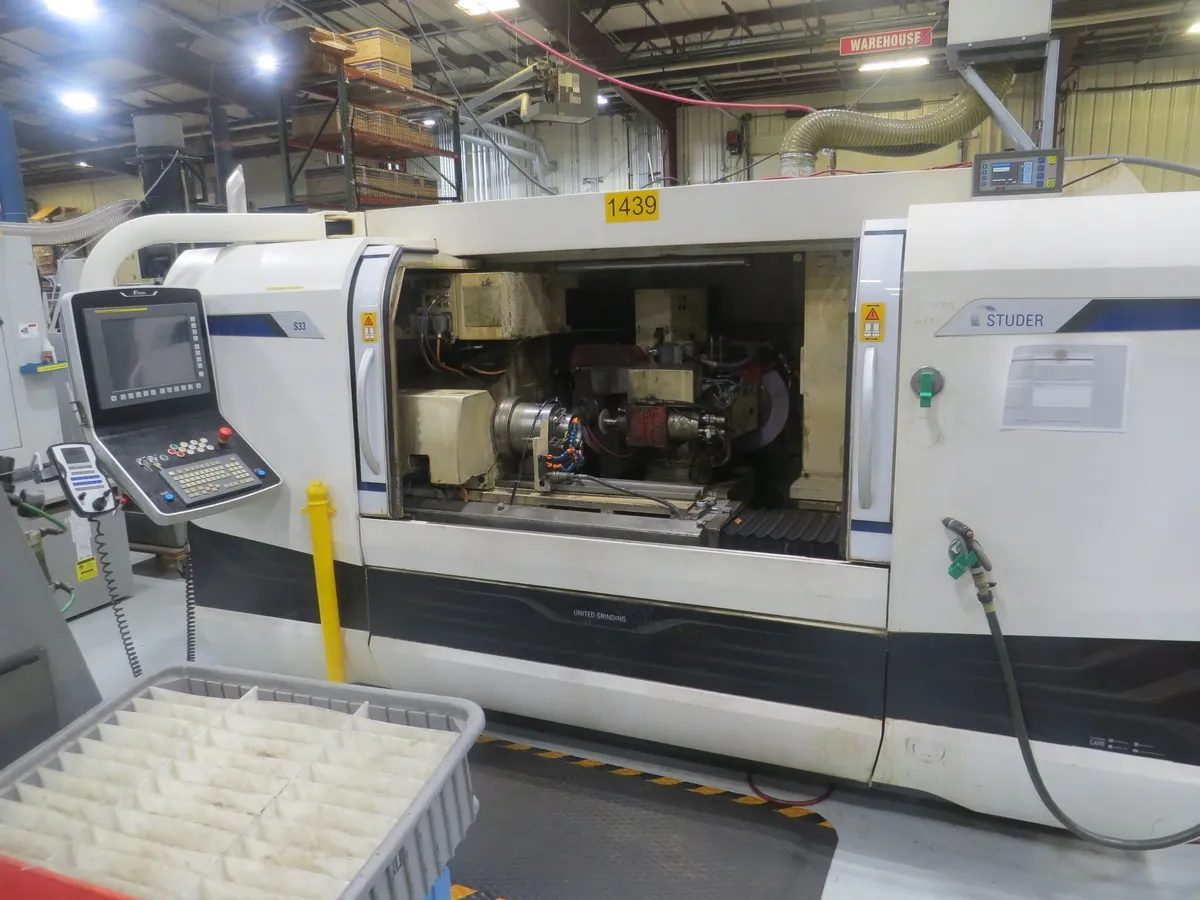

STUDER S33 CNC UNIVERSAL CYLINDRICAL GRINDER
S/N 236 YEAR: 2016

STANDARD SPECIFICATIONS

CAPACITY & WORK ENVELOPE
Center Height............................6.9”
Distance Between Centers.................15.7”
Max Workpiece Weight.....................330 lbs
Max Workpiece Diameter...................13.7”

AXIS TRAVELS & SPEEDS
X-Axis Travel............................14.6”
Z-Axis Travel............................19.7”

RAPID TRAVERSE
X-Axis...................................590.6”min
Z-Axis...................................787.4”min

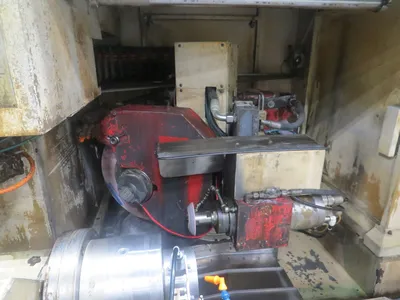

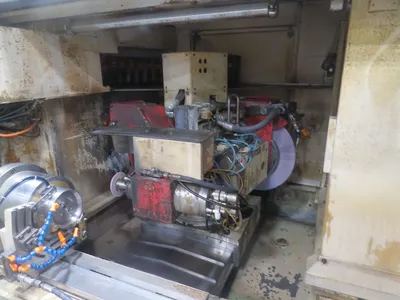

SPINDLE / GRINDING SYSTEM
Max Spindle Power........................8kW
Max Spindle Speed........................3,200 RPM
Grinding Wheel: Max Diameter.............20”
Width....................3.1”

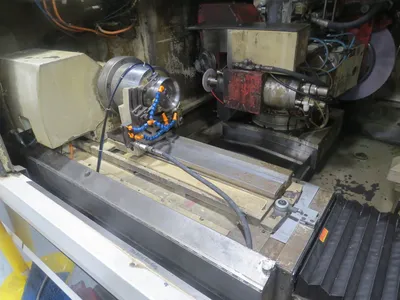

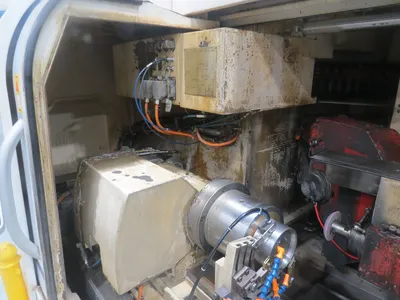

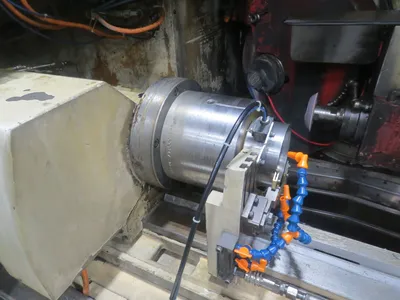

WORKHEAD
Speed Range..............................1-1,500 RPM

EQUIPPED WITH
2-External spindles.
1-Internal spindle.
Automatic swivel with Hirth coupling.

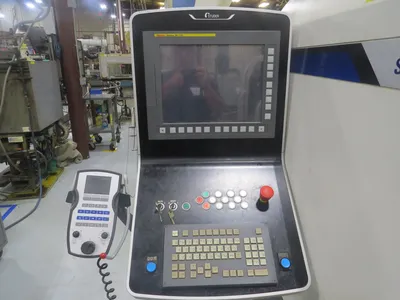

Fanuc controls.
Studer Pictogramming software.
Optional C-Axis for contour/thread grinding.

Specifications are deemed accurate, however, subject to verification or prior sale.
