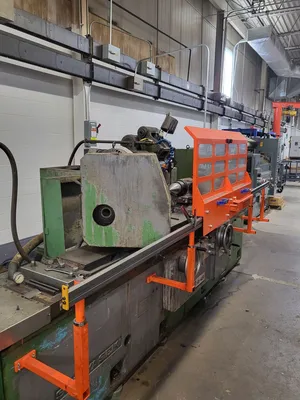

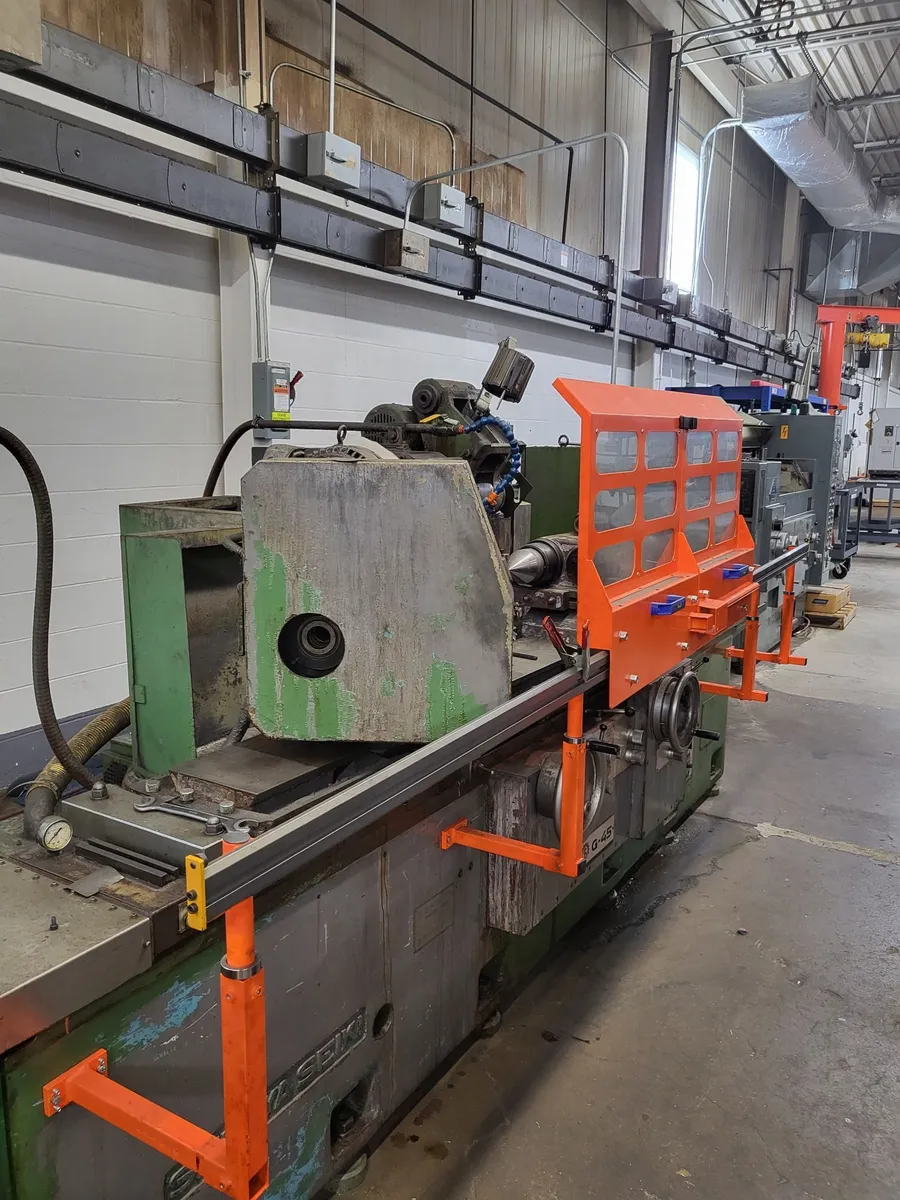

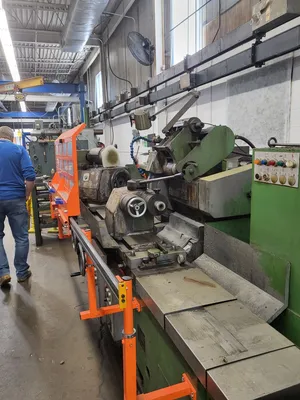

SHIGIYA GP-45-100 PLAIN GRINDER

SHIGIYA GP-45-100 OD GRINDING MACHINE
S/N 50166

SPECIFICATIONS

CAPACITY
Swing Over Table...........................39"
Max Grinding OD............................16.9"
Max Grinding Weight........................1,433 LBS

WHEEL SPINDLE STOCK
Wheel Speed................................835-1040 RPM
Wheel Spindle Stock Swivel Angle...........Non Swivel
Handle Feed Amount(Handle Revolution)......0.04”
Handle Feed Amount(Per Graduation).........0.0001”
Fast Feed Travel...........................2.3”

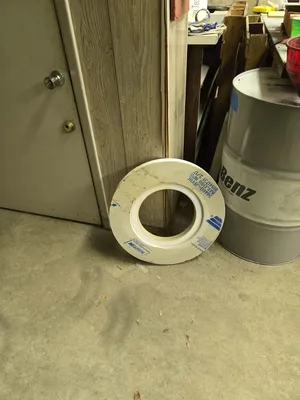

WHEEL DIMENSIONS
OD x Width x ID............................24”x 3”x 10”

TABLE
Swivel Angle...............................2.5”
Handle Feed Amount(Per Revolution).........1-59
Auto Feed Speed Range......................2~118

HEADSTOCK
Taper Of Center............................MT No. 5
Work Spindle Speed.........................13~200 RPM
Headstock Swivel Angle.....................120 Degrees

TAILSTOCK
Taper Of Center............................MT No. 5
Tailstock Moving Distance..................1.7”

MOTORS
Wheel Spindle..............................11 Kw
Work Spindle...............................0.75/1.5 Kw
Wheel Spindle Lubricating Pump.............0.2 Kw
Grinding Fluid Pump........................0.18 Kw
Hydraulic Pump.............................1.5 Kw

Center Height From Floor...................43.3”

Weight.....................................9,920 LBS.

Specifications are deemed accurate, however, subject to verification or prior sale.

NOTE: Due to rising costs partly by unsteady pricing in purchased goods and supply chain issues, this quote is good for 30 days. Prices are subject to change, please contact us to confirm prior to issuing an order.
