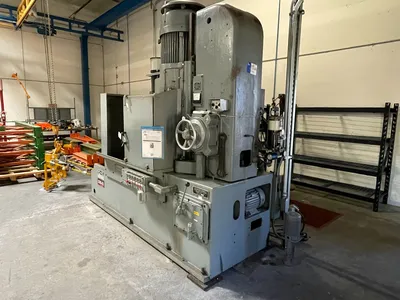

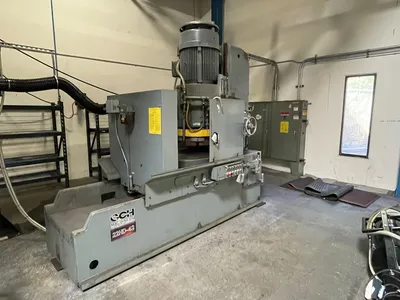

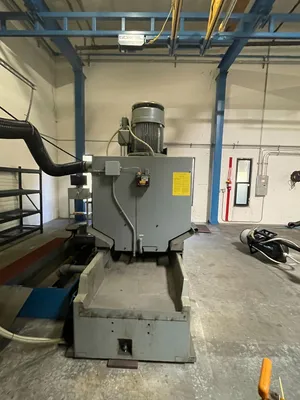

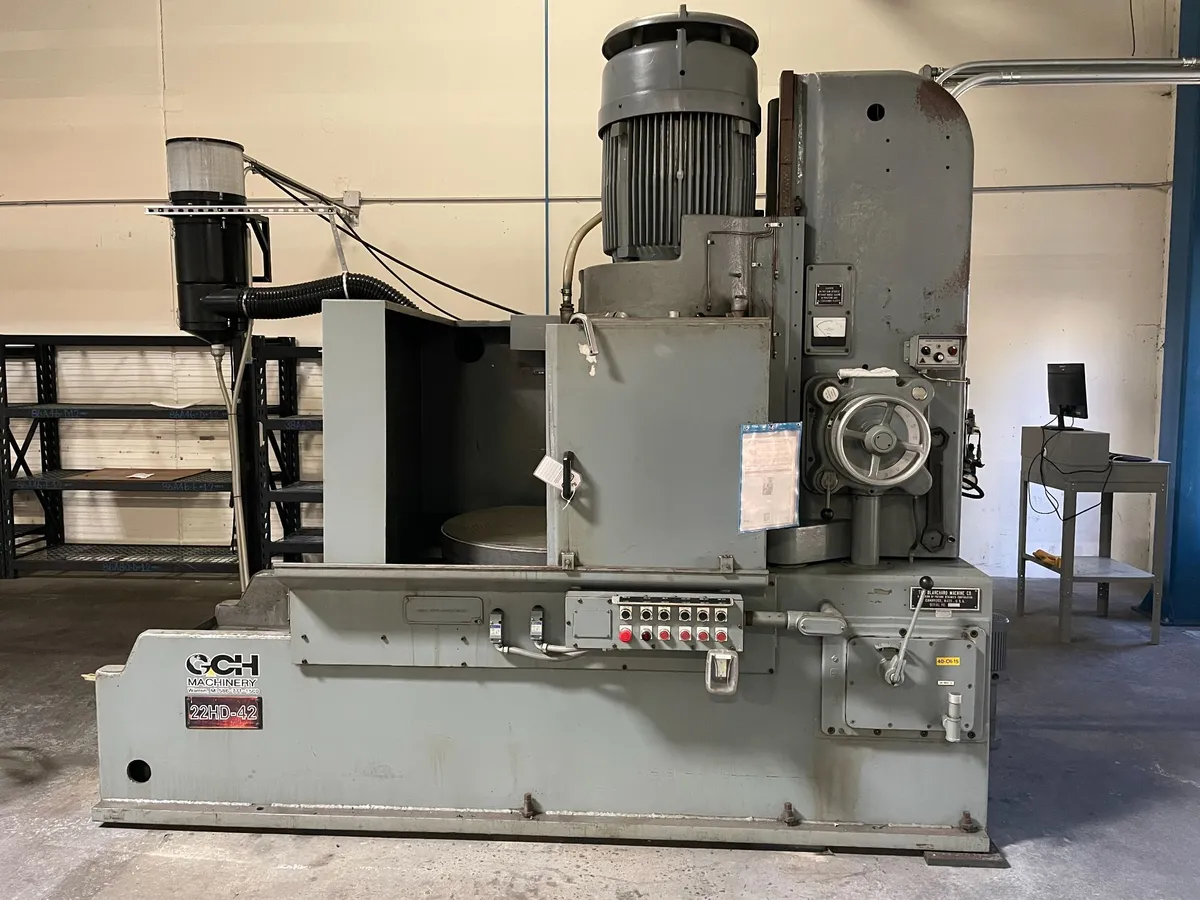

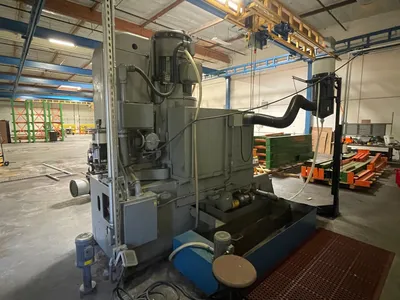

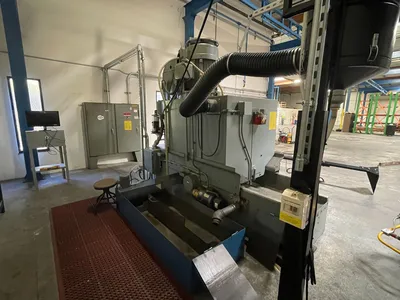

Used 1973 BLANCHARD 22HD-42 | GRINDERS, SURFACE, ROTARY TYPE - VERTICAL
Have one to sell?
ConditionUsed
1 available
BLANCHARD 22HD-42 vertical rotary surface grinder, 1973. Used equipment with a 42-inch chuck, 48-inch swing, 21-inch under-wheel capacity, 48 x 21-inch size capacity, and 40 power.
#22HD-42 BLANCHARD VERTICAL
ROTARY SURFACE GRINDER
S/N 13987 Year: 1973
STANDARD SPECIFICATIONS
RANGE
48" Swing diameter x 21" high over 42" diameter chuck with new segments.
WORKTABLE
One piece 42" diameter magnetic chuck. 1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22" Cortland chuck segments, each 11 1/4" x 2 1/4" x 6" long.
WHEEL
40 H.P. Spindle motor, 100 HP Heavy Duty Geared Head
OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet – 125 gallon tank in base.
FLOOR SPACE AND HEIGHT
11’ 11" X 8’ 4"
Maximum height…………………………………………… 9’ 1"
Minimum height……………………………………………. 8’ 7"
WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds
EQUIPMENT AND FEATURES
42" One piece magnetic chuck 1/4” top plate.
100 HP Heavy Duty Geared Head
Wheel dresser.
Load meter.
Guards.
dry base.
21” Vertical height.
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
BLANCHARD 22HD-42 vertical rotary surface grinder, 1973. Used equipment with a 42-inch chuck, 48-inch swing, 21-inch under-wheel capacity, 48 x 21-inch size capacity, and 40 power.
Imperial
| Chuck Size | 42" |
| Horz/Vert | Vert |
| Power | 40 hp |
| Swing | 48" |
| Under Wheel | 21" |
| Dimensions | 11' 11" x 8' 4" |
| Weight | 19000 |
#22HD-42 BLANCHARD VERTICAL
ROTARY SURFACE GRINDER
S/N 13987 Year: 1973
STANDARD SPECIFICATIONS
RANGE
48" Swing diameter x 21" high over 42" diameter chuck with new segments.
WORKTABLE
One piece 42" diameter magnetic chuck. 1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22" Cortland chuck segments, each 11 1/4" x 2 1/4" x 6" long.
WHEEL
40 H.P. Spindle motor, 100 HP Heavy Duty Geared Head
OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet – 125 gallon tank in base.
FLOOR SPACE AND HEIGHT
11’ 11" X 8’ 4"
Maximum height…………………………………………… 9’ 1"
Minimum height……………………………………………. 8’ 7"
WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds
EQUIPMENT AND FEATURES
42" One piece magnetic chuck 1/4” top plate.
100 HP Heavy Duty Geared Head
Wheel dresser.
Load meter.
Guards.
dry base.
21” Vertical height.
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
