Used LANDIS 3RH | GRINDERS, CYLINDRICAL – UNIVERSAL
Have one to sell?
ConditionUsed
1 available
LANDIS 3RH universal cylindrical grinder with 14" swing, 96" centers, and 14" x 96" capacity. Features 5 HP power, 2 HP workhead, 12 RPM workhead speed, and a 14" grinding wheel.

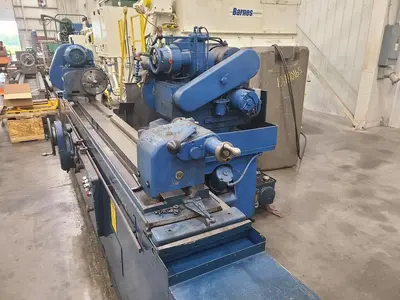

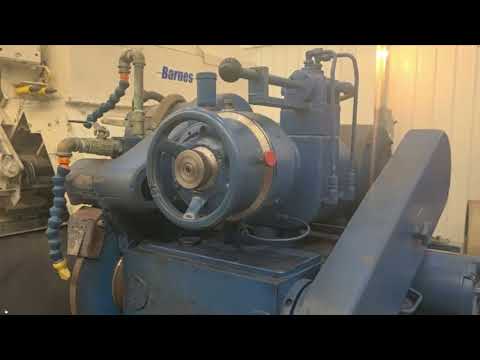

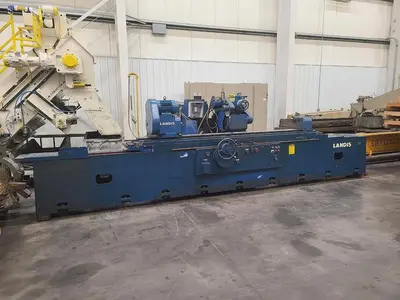

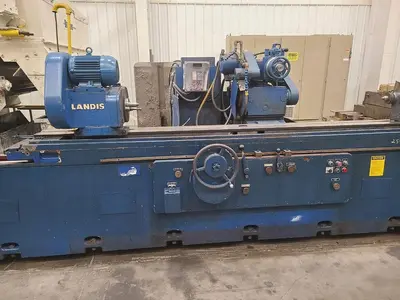

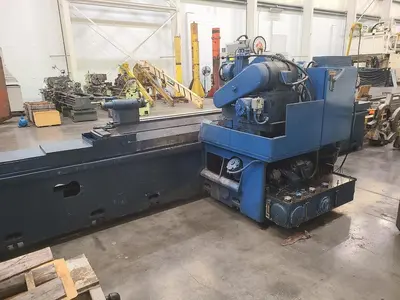

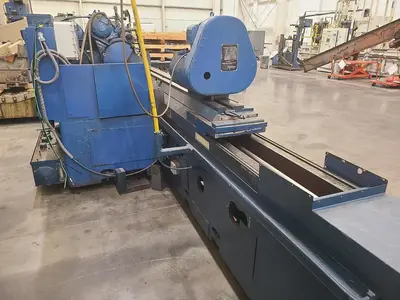

LANDIS 3RH 14”x 96” UNIVERSAL CYLINDRICAL GRINDER
S/N 796-54
SPECIFICATIONS
Swing: 14" Catalog Spec (Machine Can Swing Up to 17" Based on Measurement)
Center Distance: 96"
Max. Diameter with Full Size Standard Wheel: 14-31/32"
Min. Diameter Wheel to Grind Zero Diameter Work on Centers: 9-1/4"
Traverse Speed: 2 to 240 IPM
Traverse Per Turn of Handwheel:
Slow: .100"
Fast: .750"
WHEELHEAD AND WHEELFEED:
Standard Wheel Size: 14" x 1-1/2" x 5"
Grinding Wheelhead Swivel Range:
Upper: 180 Degrees
Lower: 60 Degrees CW to 30 Degrees CCW
Automatic Infeed at Table Reversal (On Diameter): .0003" to .004"
Max. Distance Wheel Centerline to Work Centerline: 17"
Min. Distance Wheel Centerline to Work Centerline: 3"
Work Diameter Reduction Per Revolution of Handwheel: .100"
Work Diameter Reduction Per Revolution of Fine Feed Knob: .005"

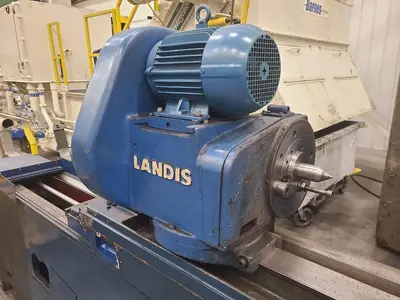

Headstock Work Center: #14 Jarno

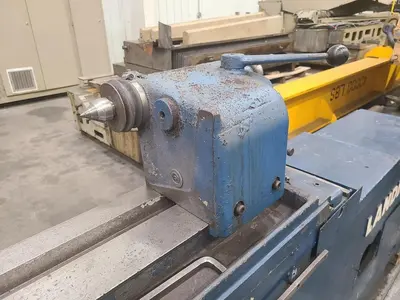

Tailstock Work Center: #10 Jarno

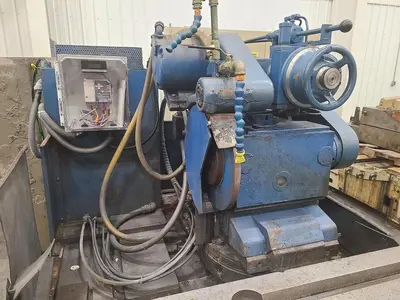

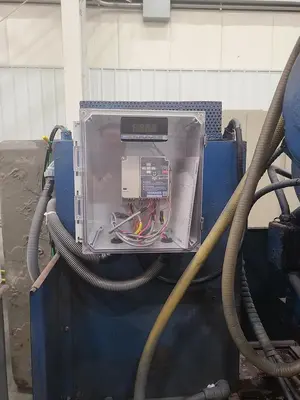

Headstock Work Speeds, Infinitely Variable Via VFD Drive (Exact Speed Range Not Known)
Diameter of Hole Through Headstock: 1-7/16"
Headstock Spindle Nose: 6A-2
Headstock Swivel Range: 120 Degrees
Swivel Table Graduated (Inches Per Foot): 4-3/4"
Swivel Table Graduated (Degrees Included Angle): 23 Degrees
EQUIPPED WITH:

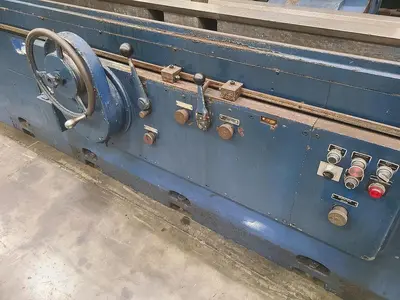

Traverse Feed Selector
Wheelhead Ways Lubrication Pump
Left/Right Tarry
Traverse Rate Knob
Headstock Speed Knob
Grinding Wheel Hubs
Flood Coolant Built Into Base of the Machine
5 HP Grinding Wheel Motor
Coolant Pump in Base
Machine Wired for 3 Phase, 60 Cycle, 440 Volts
DIMENSIONS:
Overall Size Machine: 240" L-R x 84" F-B x 72" H
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
LANDIS 3RH universal cylindrical grinder with 14" swing, 96" centers, and 14" x 96" capacity. Features 5 HP power, 2 HP workhead, 12 RPM workhead speed, and a 14" grinding wheel.
Imperial
| Swing | 14" |
| Size Capacity | 14 x 96 |
| Centers | 96" |
| Power | 5 hp |
| Workhead Power | 2 hp |
| Workhead Speed | 12 RPM |
| Grinding Wheel Dia. | 14" |
| Dimensions | 240 x 84 x 72 |
